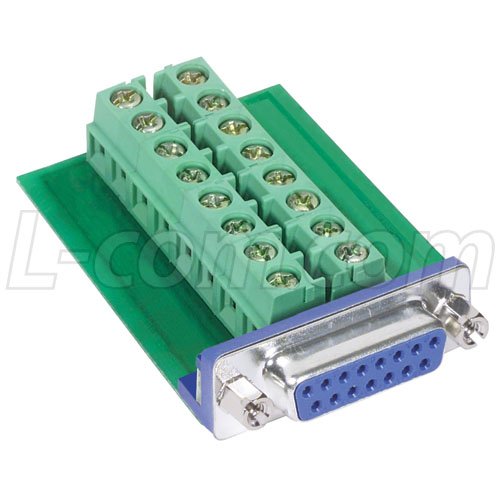

L-com DGB Series DB15 Female Connector for Field Termination (Screw Terminal)
Product Description
L-com DGB Series DB15 Female Connector for Field Termination (Screw Terminal)
- Use this connector to easily terminate DB15 (DA-15) female connectors, no crimping or soldering required
- The UL grade 94V-0 connector insulator satisfies flammability requirements; The gold plated contacts provide reliable connections with repeated mating cycles
- The screw terminal block allows for simple, quick wiring changes in the field
- This connector is panel mountable for thicknesses of up to 0.062 inches
- This connector is a "low-density" 15 pin D-Sub, sometimes called a DB15 or DA-15, female gender; Search L-com DGB Series for more D-Sub adapter options
The DGB15FT field termination female connector provides an easy and convenient way to perform field termination of any cable. Separate connection points are provided for all 15 positions of the connector plus the ground. The screw terminal block design with set screws provides reliable electrical connections utilizing no special tools. The terminal block area is clearly marked making proper termination virtually foolproof. Panel mountable for thickness up to 0.062". This is a "low-density" 15 pin D-Sub female connector, sometimes called DB15 or DA-15. Search L-com DGB Series for more D-Sub adapter options.
Technical Specifications
