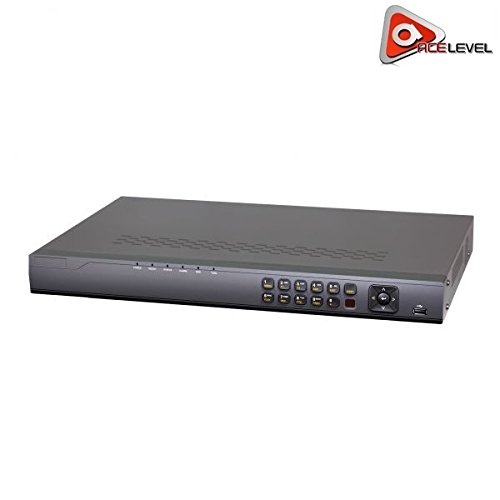

LTS Platinum Enterprise Level 8 Channel HD-TVI DVR: 1U, Up to 12TB Capacity, H.264 & Dual-Stream Video Compression - LTD8308T-ST

Recorder Channel: 8-Channel. Recorder Case: 1U Case. Recorder Technology: TVI DVR. Video compression: H.264. HD-TVI video input: 8-ch. Video input interface: BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive. IP input: 2ch (1080p @ 30fps). Audio compression: G.711u. Audio input: 4-ch, RCA (2.0 Vp-p, 1 kΩ) (using the 1st channel of audio input). Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 kΩ). HDMI / VGA output: 1920 x 1080 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz. Encoding resolution: Main stream: 1080P / 720P / VGA / WD1 / 4CIF / CIF; Sub-stream: WD1 (non-real-time) / 4CIF (non-real-time) / CIF / QCIF / QVGA. Frame rate: Main stream: 1/16 fps ~ Real time frame rate; Sub-stream: 1/16 fps ~ Real time frame rate. Video bit rate: 32 Kbps-8 Mbps. Audio output: 1-ch, RCA (Linear, 1 kΩ). Audio bit rate: 64 Kbps. Dual-stream: Support. Stream type: Video, Video & Audio. Synchronous playback: 8-ch. Playback resolution: 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF. Remote connection: 128. Network protocols: TCP/ IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnPTM, HTTPS. SATA: 2 SATA interface. Capacity: Up to 6TB capacity for each disk. Network interface: 1:10M / 100M self-adaptive Ethernet interface. Serial interface: 1; standard RS-485 serial interface, half-duplex. USB port: 2 x USB2.0. Alarm in/out: 8/4. Power supply: 12V DC. Power Consumption: ≤ 20 W. Working temperature: -10°C~ 55°C (14°F ~ 131°F). Working humidity: 10% ~ 90%. Dimension: 445 x 290 x 45 mm (17.5" x 11.4" x 1.8"). Weight: ≤ 2 kg (4.4 lb). ***Hard drive is not included***
