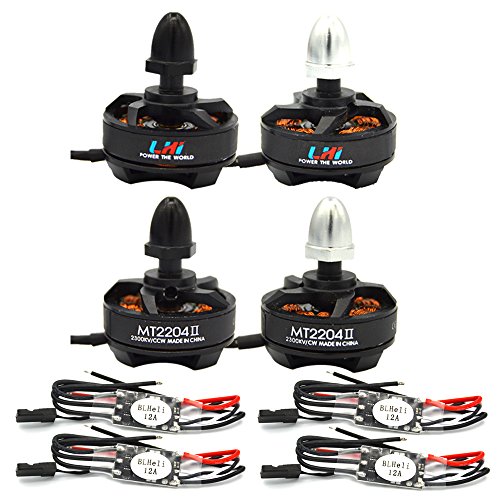

LHI MT2204 2300KV CW CCW Mini Motor +BLHELI 12A 2-3s ESC for QAV250 FPV KK 260 RC Quadcopter 4-Axis Aircraft
Product Description
LHI MT2204 2300KV CW CCW Mini Motor +BLHELI 12A 2-3s ESC for QAV250 FPV KK 260 RC Quadcopter 4-Axis Aircraft
- The LHI MT2204 2300KV brushless motor is the best motor for 200-300 sizes multirotors among all the motors we`ve tested, which weighs only 25g.eat performance at affordable price.
- Each motor is carefully balanced and tested before shipped out from factory. Low CG design, ligth weight design, longer flight duration
- Factory has made dynamic balance test for each motor
- Based on BEHELI firmware, further optimized to the perfect drive performance.Separate power supply for MCU and BEC, enhancing the ESC's ability of eliminating magnetic interference.
- Low-voltage protection, over-heat protection and self-check functions.Equipped with built-in linear BEC or switch BEC
12A Brushless BLHELI Speed ESC
Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
Continuous Current: 12A
Burst current (10S): 15A
Li-xx Battery (cell): 2-3
Dimension (L*W*H): 25mm x 20mm x 7mm
Weight wires Included: 9
BEC Mode: Linear
BEC Output: 1A/5V
Programmable: Yes
LHI MT2204 2300KV Motor
1. Low CG design, ligth weight design, longer flight duration
2. Factory has made dynamic balance test for each motor
3. Integreated processing between prop mount holder and motor cap
4. Adopts Japan NMB bearing, with low noise and longer lifetime
5. Adopts Japan 0.2mm spindle, with high efficiency and low heat
Specification:
Franmework: 12N14P
Lipo battery: 2-3S
Max. Thrust: 440g
Prop suggest: 5-6 inch
Weight: 28g
Suitable for: 250mm wheelbase mini quadcopter, light weight fixed-wing copter, indoor 3D airplane
Package Includes:
2 x LHI MT2204 2300KV Motor (CW)
2 x LHI MT2204 2300KV Motor (CCW)
4 * Gartt 12A Brushless BLHELI Speed ESC
