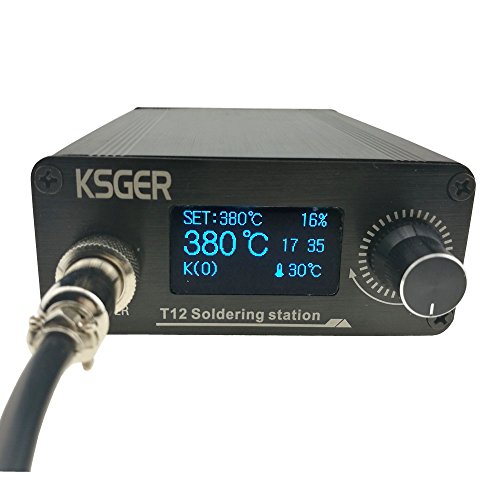

KSGER T12 OLED Soldering Station DIY Kits STM32 V2.1S 1.3 Display Temperature Controller Electronic Welding Solder Iron Tips Aluminum Alloy Handle Case US Plug Power Equipments 72W 5A

Input Voltagle:110-240V
Out Output Temperature:150C-480C
Case material:aluminum alloy
Case Size:130*88*38mm
Controller:2018 new STM32 V2.1S
HW:2.1S
SW:2.10
Defaut tip:T12-K
Power supply:24V 5A
Plug type:US plug

Package include:
Soldering station x1pcs
aluminum alloy handle x1pcs
T12-K x1pcs
US plug x1pcs

1.This is 2018 new STM32 V2.1S OLED soldering station,we add sunction tin pump function compared with old STM32 V2.1S,on the back of the controller,it has a interface. its display is 1.3 inch.you need to prepare power plug by yourself.
2.NOTE:Iron tip does not work continuously with high temperature, high temperature work will easily damage the tip!
3.In this package,it includes aluminum alloy handle,the aluminum alloy handle is our new produced handle,it is very high quality.
4.Ordinary solder melting point is 183°C, lead-free solder melting point is 227°C, usually the welding temperature is 300-380°C, 380°C is the temperature of the dividing line, higher than 380°C, iron head oxidation and loss is extremely fast, seriously affect the heating core life.
5.STM32 OLED display T12 soldering station simple instructions: 1: the main function of welding station and performance characteristics: temperature range 150 ~ 480C 2:the thermocouple cold junction temperature automatic compensation range -9-99 C (to be more accurate). 3:PID temperature control, temperature stability ± 10 C (no load). 4:can save 5 groups of temperature. 5:can save the temperature of each head calibration parameters, support all types of T12 head.
6. under normal circumstances, 1 second continuous counter-clockwise rotation below 3 cells into the standby (default 200 degrees (150-300 degrees can be configured) state, if the set temperature is below 200 degrees directly into sleep.
