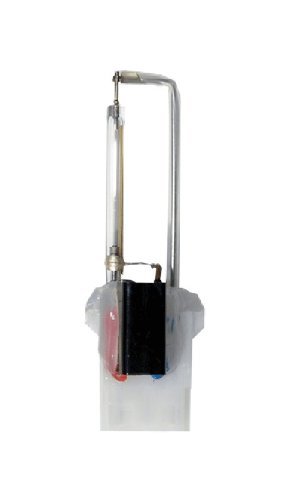

K149130A Replacement Tube

K149130A Replacement Tube
For Evictor Strobe Light®10K

Check occasionally for strobe tube degradation.

Should the strobe tube misfire, have a noticeable decrease in light output, glow continuously, or darken - replacement or repair may be necessary.

REPLACEMENT INSTRUCTIONS

Disconnect power from supply circuit and wait at least 5 minutes before opening the unit to allow all capacitors to discharge.

Remove the screw located at the bottom of the dome.

Grasp the top of the dome and push down while turning the dome counter-clockwise approximately ¾".

Gently lift the dome away. Ensure that the gasket between the dome and the base is not lost.

Grasp the strobe tube by its base and pull it out of the socket, using a gentle rocking motion.

Insert a new strobe tube.

Before replacing the dome, ensure that the gasket is properly seated on the housing base. Place the dome over the base, align the recesses inside the dome lip with the four pins on the base. Push down on the dome and turn it clockwise unit it locks in place.

Replace the screw in the bottom of the dome.

Test the Evictor Strobe Light® for proper operation.
