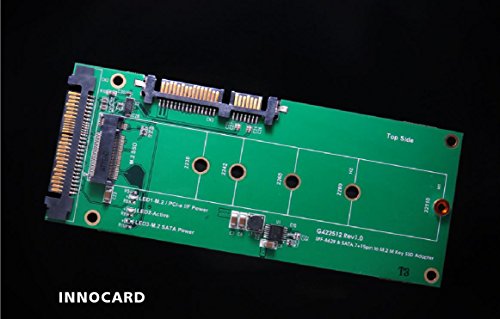

Innocard U.2 (SFF-8639) & SATA 7+15pin to M.2 SSD Adapter / U.2 to M.2 NVMe SSD / SATA to M.2 SSD

Features

1.) Compliant with NVM Express 1.0a
2.) Support PCI Express Base Specification Rev 3.0
3.) Support SSD_Form_Factor_Version1_a
4.) Compliant with PCI Express M.2 Specification Version 1.0
5.) Compliant with SFF-8639 Specification Rev 2.0
6) Compliant with SATA Reversion 3.2

Specifications

1.) M.2 NVMe to U.2(SFF-8639) convert
2.) M.2 SATA to SATA 22pin convert
3.) Build in M.2 M-key Female connector
4.) Build in SFF-8639 connector, pin-out defined by PCIe
5.) PWM synchronous buck converter Power IC
4A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
6.) LED1 RED LED Blinking indicates M.2 SSD active status
7.) LED2 Green LED on indicates M.2 NVMe SSD power ready
8.) LED3 Green LED on indicates M.2 SATA SSD power ready

M.2 SSD Form Factor Support

Type 2230-D2-B-M: 30mm(L) x 22mm(W)
Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)
Type 2280-D2-B-M: 110mm(L) x 22mm(W)
