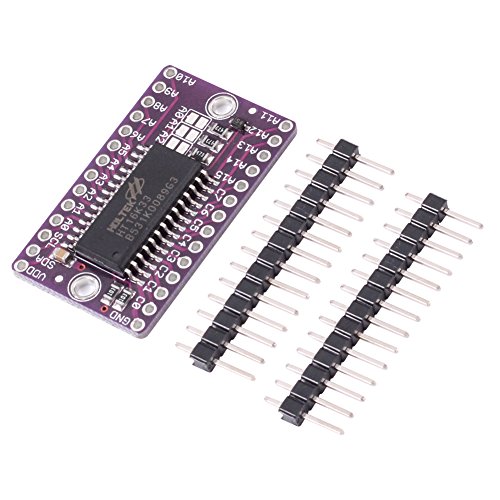

Icstation HT16K33 16X8 LED Dot Matrix Driver Module Breakout Board I2C for Arduino
Product Description
Icstation HT16K33 16X8 LED Dot Matrix Driver Module Breakout Board I2C for Arduino
- On-board LED dot matrix driver Chip, maximum support 16X8 LED display
- Built-in 13X3 arrany scanning cirucit compatible with most MCU via the 2-wire I2C bus
- Widely used in the the industrical control display,digital clock, thermometer, counter,etc.
- Working Voltage: DC4.5-5.5V
- Ship it out by e-packet with tracking information and 7-17 days delivery time usually
The HT16K33 is a memory mapping and multi-function LED controller driver. The max. Display segment numbers in the device is 128 patterns (16 segments and 8 commons) with a 13*3 (MAX.) matrix key scanner circuit. The software configuration features of the HT16K33 makes it suitable for multiple LED applications including LED modules and display subsystems. The HT16K33 is compatible with most microcontrollers and communicates via a two-line bidirectional I2C-bus. It is widely used in the the industrical control display,digital clock, thermometer, counter,also perfect for your DIY LED dot matrix display project.
Technical Specifications
