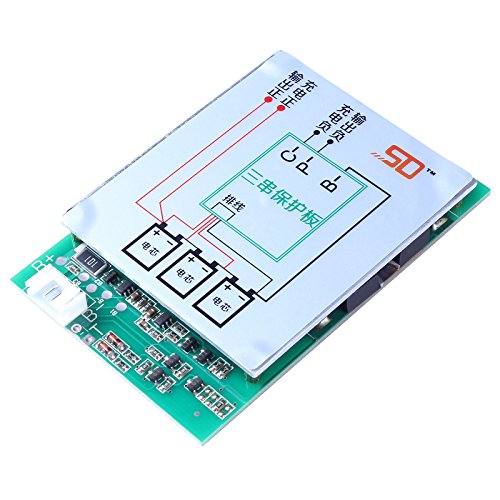

Icstation 12V 150A 3S Lithium Battery Protection PCB BMS Board with Balance for 18650 18550 Li-ion Lipo Battery Cell Pack Sqaure
Product Description
Icstation 12V 150A 3S Lithium Battery Protection PCB BMS Board with Balance for 18650 18550 Li-ion Lipo Battery Cell Pack Sqaure
- 12V 150A 3 cell Li-ion battery charge discharge protection board with Japan battery control IC supporting balance charging function
- Overcharge protection voltage: 4.2v±0.025v, Over-discharge protection voltage: 2.8V±0.1V
- Maximum Continuous Working Current: 100A, Maximum Charging Current: 10A, Charging Voltage: 12.6-14V
- PCB size: 78 X 52 X 10mm/3.07 X 2.05 X 0.39inch(L*W*H)
- Ship out by e-packet with tracking information and 7-17 days delivery time usually
This 3 cell lithium ion battery protection board is equiped with Japan battery control IC with over charging, over discharging, over current and short circuit protection and balace charging function. It is perfect for li-ion lipo battery cell pack such as 18650,18550, 14500 avoiding the damage during charging or discharge then prolong their lifetime.
Specifications:
1. PCB size: 78 X 52 X 10mm/3.07 X 2.05 X 0.39inch(L*W*H)
2. overcharge protection voltage: 4.2v±0.025v
3. Over-discharge protection voltage: 2.8v±0.1v
4. Maximum Continuous Working Current: 100A
5. Maximum Charging Current: 10A
6. Charging Voltage: 12.6-14V
7. Maximum Load: 1200W@12V
Package Included:
1X 12V 150A 3S 18650 Lithium Battery Protection Board
