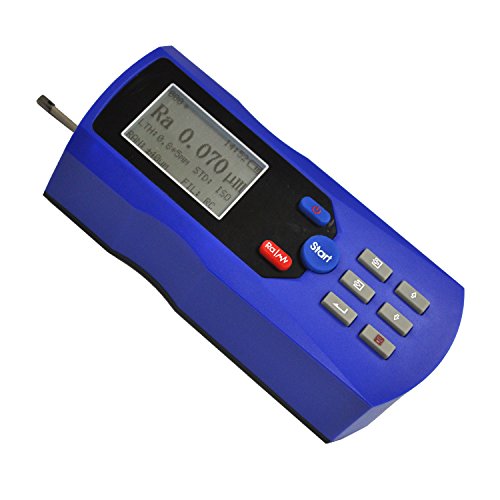

IPRE PRSR210 Portable Surface Roughness Tester, Profilometer, Blue

Features:
● It is used for metrology in shop, metalworking, manufacturing, and quality control (QC) applications.
● Package: each pc in plastic carrying case, then in carton box.
● Free Shipping: UPS Expedited usually takes about 4-7 business days (except for remote areas, bad weather, and other unexpected conditions).

Specifications:
● 16 Parameters: Ra, Rq, Rz, Rv, Rp, Rm, Rt, RS, Rsm, R3z, R3y, Rz(JIS), Rku, Rsk, Rmax, Rpc
● Display: Ra、Rq: 0.005-16μm; Rz、Ry、Rt、Rp、Rv、Rmax、R3z: 0.02-160μm; RS、RSm: 1mm；Rmr: 0-100%（%Rt）；Rsk: 0-100%
● Measuring Range: ±20μm、±40μm、±80μm
● Resolution (Ra): 0.001μm
● Filter: RC、PC-RC、GAUSS、D-P
● Cut Off: 0.25mm, 0.8mm, 2.5mm
● Probe Type: Inductive
Range: 160μm
Stylus Radius: 5μm
Measure Force: 4mN (0.4gf)
Stylus Material: Diamond
Stylus Angle: 90°
● Number of cut-offs: 1 to 5
● Max Running Length: 17.5mm/0.7inch
● Min Running Length: 1.3mm/0.052inch
● Accuracy: ≤±10%
● Traverse Speed: 0.5mm/s, 1mm/s
● Output: USB and Bluetooth
● Power Supply: Built-in rechargeable lithium battery
● Dimensions: 140 x 52 x 48mm
● Product Weight: 440g

Package Includes:
● 1 x Surface Roughness Tester
● 1 x Standard Stylus-PRRS100
● 1 x Stylus Sheath
● 1 x Calibration Block
● 1 x Calibration Support
● 1 x Adjustable Stand
● 1 x U-Disk and Software for PC
● 1 x USB Cable
● 1 x AC/DC Adaptor
● 1 x Small Storage Box
● 1 x User Manual

Any demands, please feel free to contact us (Email: [email protected]). We are always here for you!
