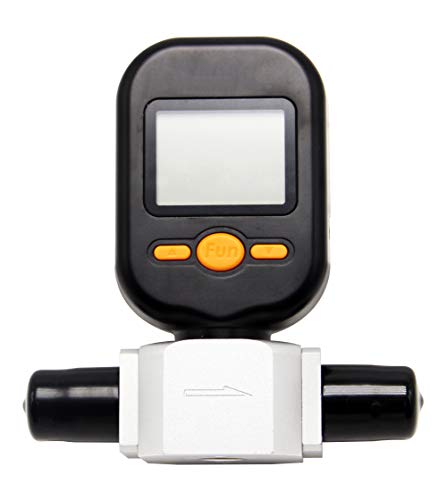

Huanyu MF5712 LCD Electronic Mass Flow Meter Digital Gas Air Nitrogen Oxygen Mass Flow Rate Tester Meter Protable Flowmeter 200 L/Min for Inactive Gas

Huanyu Instrument
Huanyu Instrument mainly provides instruments and tools. We provide voltage customized services, specific requirements can be contacted by email, we will respond promptly.After your order is confirmed, the product usually takes 7--13 business days to arrive to your hand.

Features:
Ultra Low Power By Batteries Or Optional External AC Adaptor
Protable Design, Small And Easy To Install
MEMS Technology, Achieve Small Gas Flow Rate Testing, High Accuracy
RS485 Modbus Protocol Ready For Networking
User Programmable Range Alarm For Safety And Other Monitoring/Control Functionality
Applications:
MF5712 Gas Mass Flow Meter Suitable For Different Gas (Like Air, Compressed Air, Oxygen, Nitrogen, CO2; And Other Inactive Gas Ect. ) Instant Flow Rate Testing And Flow Accumlation Calculation.

Specifications:?
Accuracy:± (2.5+0.5FS)%
Repeatability:0.5%
Response Time:≤ 2sec
Power Dissipation:≤ 10mW
Output:RS485
Display Unit: Instant Flow Rate:SLPM(L/min); Flow Accumlation:NCM(m3)
Display Resolution:0.1L/Min
Functions:Password Setting; Total Setting & Resetting; Alarm Function
Working Pressure:≤ 0.8MPa
Working Temperature:-10 ～ +55℃
Pressure Loss:≤ 2000Pa
Coutinuous Working Time:> 60 days (With Batteries)
Standard Calibration Gas:Nitrogen, 20°C, 101.325kPa
User Interface:miniUSB
DN:12mm
Mechanical Connection:NPT 1/2
