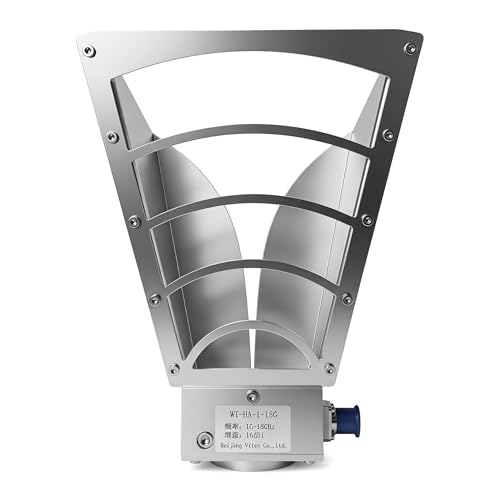

Horn Antenna Standard for Microwave Testing, 1-18GHz Frequency Range, for EMC/EMI Testing, UAV Detection & Lab Measurements, N-F Connector (ARC)

Horn Antenna Standard for Microwave Testing, 1-18GHz Frequency Range, for EMC/EMI Testing, UAV Detection & Lab Measurements, N-F Connector (ARC)

• Ultra-Wideband Laboratory Standard: This precision dual-ridge horn antenna operates across the entire 1 to 18 GHz (1000-18000MHz) spectrum, providing consistent gain from 6 to 16 dBi. It is an indispensable tool for accurate RF testing, wireless R&D, and antenna measurement in laboratory environments.
• Engineered for Precision Compliance Testing: Featuring a low VSWR (≤2.3, with measured chart provided) and defined beamwidth (H:57.6°/V:37.9°), it delivers reliable, repeatable results for critical EMC/EMI applications, including radiated emissions and immunity testing per standards like IEC/EN 61000-4-3.
• Robust Design for Demanding Field Use: Built with a durable aluminum housing, it handles high power up to 100W and operates in extreme temperatures from -55°C to +75°C. This ruggedness makes it equally suitable for outdoor field applications like UAV (drone) signal detection, monitoring, and countermeasure systems.
• Verified Real-World Performance: Each antenna is characterized with comprehensive measured data (VSWR, Radiation Patterns, Gain Curve), not just simulations. This data-backed transparency guarantees the performance you receive, ensuring confidence in your measurement accuracy.
• Ready for Integration: Equipped with a standard 50-ohm N-Type Female connector for universal compatibility with test equipment. The compact design (228x244x160mm, 1.45kg) offers a perfect balance of performance and portability for benchtop or field setups.
