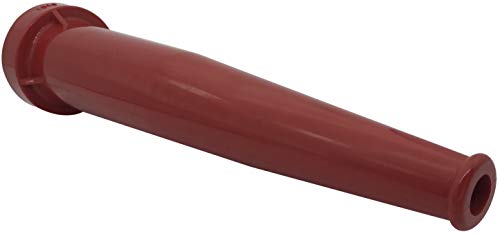

Happy Tree 1-1/2" NPSH Fire Hose Nozzle Thermoplastic Fire Equipment Plain Hose Nozzle 10" Length 1/2" Orifice
Product Description
Happy Tree 1-1/2" NPSH Fire Hose Nozzle Thermoplastic Fire Equipment Plain Hose Nozzle 10" Length 1/2" Orifice
- ◆1-1/2" NPSH inlet for attaching to a fire hose
- ◆Maximum 100 psi pressure at ambient temperature (70 degree F)
- ◆If you need 1-1/2" NST/NH nozzle, this 1-1/2" NPSH nozzle will be too small for your hose. Please check the thread of your hose before purchasing this item
â—†Female 1.5" NPSH will only connect to a male 1.5" NPSH
◆Inside diameter of 1.5" NPSH nozzle is 1.7985"
â—†NH / NST:Â The most common thread type in use by fire departments today is NST or National Standard Thread. NST also goes by the initials NH or National Hose. It can even be referred to as NHT or National Hose Thread. But NST or NH is more common these days. NH = NST.
â—†NPSH:Â National Pipe Straight Hose (NPSH) or Iron Pipe Thread (IPT) has the same threads per inch (TPI) as National Pipe Tapered (NPT) but the thread does not taper. NPSH is a straight thread and seals by a gasket in the female coupling which allows for a swivel, just like NH / NST, which make both ideal for hose couplings. Warning - It will NOT thread into a female NPT pipe. For example, a male NPSH coupling will NOT thread into a female metal or pvc pipe.
Technical Specifications
