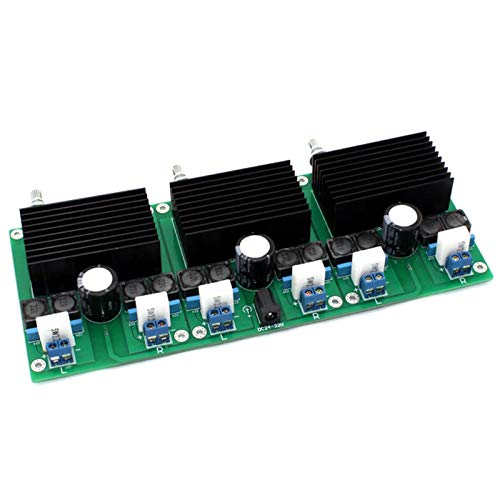

HIFI TDA7498 Class D 6 Channel Power Amplifier Board 6100W

HIFI TDA7498 Class D 6 Channel Power Amplifier Board 6*100W

Use original TDA749
Electrolytic capacitors use imported 2200UF/35V electrolysis to ensure a strong and continuous power support.
The resistor uses 1206 0805 high-precision chip resistor to ensure a good signal-to-noise ratio of the whole machine.
The PCB adopts 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of tin-spraying ensures the good passing performance of the current. First-class PCB quality.
With a fully enclosed dust-proof potentiometer, the performance is more stable and more durable than ordinary potentiometers.
Power and sound are beyond TA2024
The volume is very small and the power is large.
No noise, the circuit design is very reasonable, without any low noise!


Parameters:
Working method: Class D
Quiescent current: 100mA
Work efficiency: 90%
Rated output power: 6*100W
Frequency response: 20Hz to 20KHz
Working voltage: DC19V to DC32V
Recommended power supply voltage: DC24V
Maximum output current: 5A
PCB board size: (218 × 90) mm
Speaker parameters: 6-8 Euro

Package: 1pcs HIFI TDA7498 Class D 6 Channel Power Amplifier Board 6*100W
