HFeng 125KHz RFID Keypad Door Access Control System Kit +12V/3A Power Supply Switch + Fail Secure Electric Strike Lock+ Door Exit Button+10 Cards+10 Key Tags Door Opener
Product Description
HFeng 125KHz RFID Keypad Door Access Control System Kit +12V/3A Power Supply Switch + Fail Secure Electric Strike Lock+ Door Exit Button+10 Cards+10 Key Tags Door Opener
- 1. Support 500 users. Can open the door with card, password, password plus card. Very easy to program.
- 2. With door bell button, can connect to a extra door bell.
- 3. Working with DC12V voltage. Low current. Very easy to install and use.
- 4. Suitable for wooden, metal door. Best choice for home/apartment/office, etc.
- 5. Fail secure model. The door will locked without power, unlocked with power.
Product Specifications
RFID Access Controller
User Capacity: 500 user
Dimension: 117*117*22mm(L/H/W)
Working Frequency: 125KHz
Working Voltage: DC12V
Working Current < 100mA
Working Temperature: -10 to +70
Reading Distance: 0-10cm
Relative Humidity: 20%-90%
Unlock mode: RFID card, password, RFID card+password
Power Supply
Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110 260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm
NO strike lock
Material: stainless steel
Working Voltage: DC12V+/- 10%
Working Current: 110mA-250mA
Performance Testing: 1000000 time aging test
Dimension: 150*28 mm
Opening Mode: 90 degree swinging door
Secure Mode: NO type = fail secure type ( Unlocked when power on, locked when power off )
RFID Key cards
You can reader these key cards to open the door convenient.
Only the keys finished programed can be open the door.
Working Frequency: 125KHz
With ABS high quality
Each one has unique ID number on it
Reading Range: 1-10cm
Quantity: 10pcs cards+10pcs keys
Door Exit Button
Material: Fireproof plastic / ABS
Durability Test: 500000 times
Contact Rating: 3A/36VDC
Input: 12VDC
Output: NO/NC/COM
Working Temperature: -10 to +55
Relative Humidity: 0%-90%
Dimension: 86*86*20mm

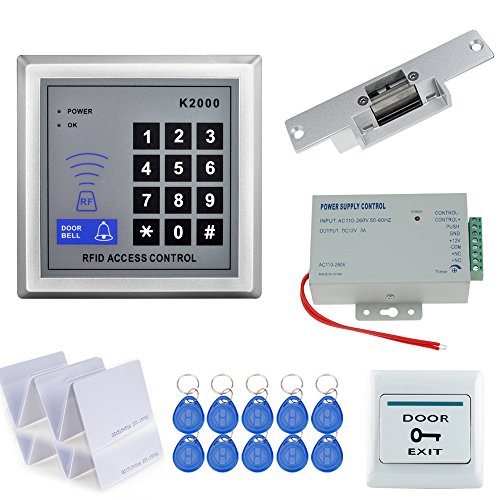

Package List
1* RFID access control keypad
1* Power Supply
1* Electric Strike Lock
1* Exit button
10* RFID Cards
10* RFID Keyfobs
