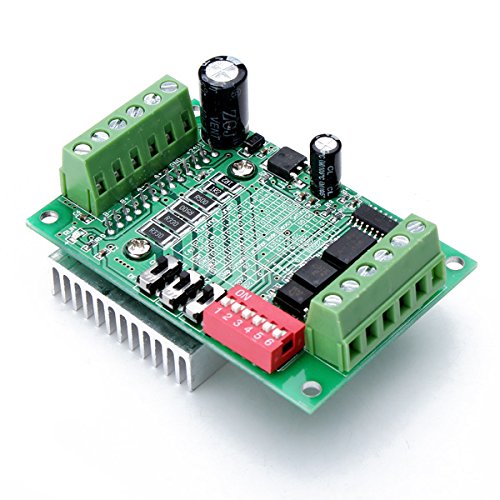

Generic TB6560 3A CNC Router 1 Axis Driver Board Stepper Motor Drivers

Specification:

Size: 75 x 50 x 35mm / 2.95 x 1.96 x 1.37inch (L x W x H)
Rated maximum output: ¡À 3A, peak 3.5A
Working voltage: DC 10V-35V
Recommended to use a switching power supply: DC24V power supply
Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 Subdivisions.

Feature:

Using the Toshiba TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.
For two-phase within 42, 57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor.
Automatic half current function.
6N137 high-speed optical coupling, guarantee high speed without losing step.

Features similar products:

1. Current grade-by-adjustable to meet your demand for a variety of applications.
2. Semi-automatic flow adjustable.
3. 6N137 high-speed optical coupling, guarantee high speed without losing step.
4. Plate printed setup instructions operation without manual also.
5. Thick teeth radiator, good heat dissipation.

Package included:

1 x TB6560 1 axis driver board
