GOWE 300w solar system kits; monocystalline semi flexible solar panel 100W 3pcs; 2pcs 10A 12V/24V Auto solar charge controller color:black solor panel

GOWE 300w solar system kits; monocystalline semi flexible solar panel 100W 3pcs; 2pcs 10A 12V/24V Auto solar charge controller color:black solor panel

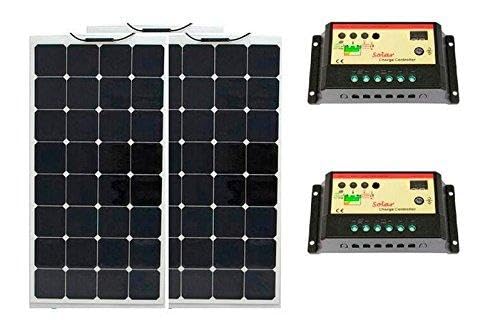

• Package List ; 1, Flexible solar panel 100w 18v, 3pcs; size: 1060MM*540MM*2MM.2, 10A, 12V/24V Auto pwm solar charge controller; 2pcs; Technical Feature; High efficiency Flexible(bendable) solar panel; High efficiency bendable solar module adopts the highest efficiency cell in the world from USA, with efficiency up to 20% or highter,which enable 25-30% higher power generation than the conventional PV modules at the same size.
• By adopting the back contact technique,the cell can be coated with the flexible materials and finally forms the high efficiency flexible solar panel.This kind of solar panel can be widely used in the field of Electric Golf Car,Patrol Car,Travel Tourism Car,Yacht,Roof Power generation,Backpack,Tent and so on.
• Maximum Power at STC (Pmax):100W; Optimum Operating Voltage (Vmp):18 V; Open - Circuit Voltage (Voc):20 V; Optimum Operating Current (Imp):5.56A; Short - Circuit Current (Isc):6.1A; Cell Efficiency:22%; Operating Module Temperature:-40 ¡ãC to +85 ¡ãC; Maximum System Voltage:1000 V DC (IEC) / 600 V DC (UL); Diodes:2 by pass; Power Tolerance:-5/+5 %; STC: irradiance 1000 W/m2, module temperature 25 ¡ãC, AM=1.5;
• Power measurement tolerance: ¡À 5%; Mechanical Characteristics; Solar Cell; Mono-crystalline 125¡Á 125 mm (5 inches); No. of Cells:32 (4*8); Dimensions:1060mm*540mm*2mm; Weight:1.5 KG; Front Glass:3.2 mm (0.13 inches) tempered glass; Frame:Anodized aluminum alloy Junction Box; IP65 rated; Output Cables; TUV; 2.5 mm2 (0.10 inches2), symmetrical lengths (-) 900 mm (35.4 inches) and (+) 900 mm (35.4inches)
