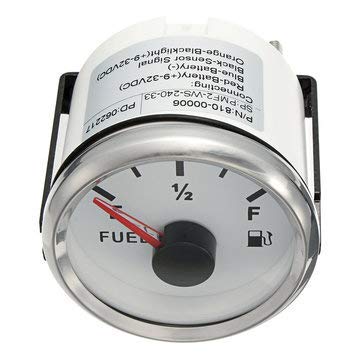

Fuel Level Gauge Sending Interface Module Bosch Sport Electrical Pressure -1Pcs

specification:
material: plastic rubber metal
product size: approx 60mm*57mm h*dia
panel opening diameter : 52mm 2-1 16"
volt: 24v
resistance: 240-33
output: 240-33 ohms resistance value
operating temperature: -40?85 ?
protection level: ip67
face color: white
application:
suitable for various oil level sensor display the position the oil tank level;12v 24v universal
main applications: craft engineering machinery vehicles generators engines machinery
installation steps:
1 cut a 16" diameter pannel hole panel you will need a minimum clearance 55mm 16"
behind panel fit the gauge
2 remove fastening ring i there alignment tab the gauge body iii place the gauge panel hole
and mark the position this tab correctly align the gauge
3 insert gauge through panel from front fit and tighten fastening ring i from the rear
4 connect wires according wiring instruction note the use dropping resistors for 24v circuit select either orange
or yellow wires for backlighting wire colour corresponds with coulour
5 insert wire harness into port the back the gauge
6 please note the gauge a voltmeter there black wire resistors the kit
connecting instructions:
red-battery
blue-battery -
black-sensor
orange-red light
yellow-yellow light
package included:
1 fuel level gauge
1 x instruction
