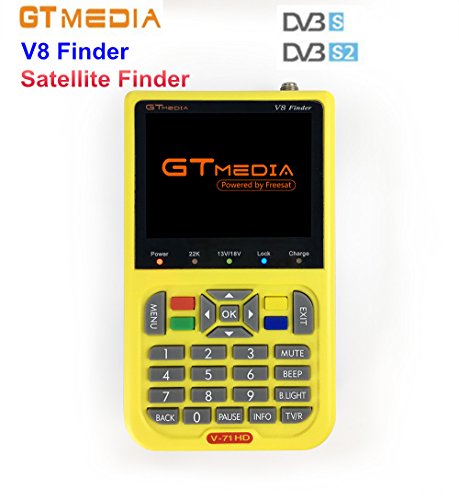

Freesat V8 Finder Digital Satellite Finder DVB-S/DVB-S2 1080P HD MPEG-2/MPEG4 3.5 inch LCD Satellite TV Receiver
Product Description
Freesat V8 Finder Digital Satellite Finder DVB-S/DVB-S2 1080P HD MPEG-2/MPEG4 3.5 inch LCD Satellite TV Receiver
- Fully DVB compliant ,Live FTA Digital Picture and Sound, 3.5 inch LCD Colour Screen, Lithium-ion 3000mA Battery ,Normal work up to 4 hours.
- Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant, Digital meter for signal strength and quality
- Supports for multiple TP detection, Supports scan of Auto ,Blind, Manual or NIT, Sound and Light Alarm for Locking Signal. Auto Calculate Angle of AZ ,EL.
- Support AV in and AV/HD out function, Support 13V / 18V / LOCK status panel LED display directly, Support battery power display.
- Supports DISEQC1.0/22khz Tone, Speaker Integrated, LNB short protect. Software upgrade via USB port
Specification
System capabilities: Full HD DVB-S/S2 Complian, Fully DVB compliant
Video Decode: AC-3,MPEG-2 MP@HL;H.264 BP MP&HP L4.1;AVS profile L6.1/4.0/2.0
PAL/NTSC: Automatic PAL/NTSC conversion
Channels Number: 6000 channels TV and Radio programmable
Favorites: 8 different favorite groups selection
OSD Language: English/German/French/Portuguese\Spanish/Italian/Russian/Turkish\Polish/Arabic/Farsi/Espanol/Deutsch
OSD Color: 16-bit OSD with anti-flickering
Channel Search: Channel search in automatic, manual and network search
Channel Edit: Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
Easy Menu: Plug and Play installation, with an easy to use Menu System
Save Channel: Automatic save for last channel
Power Supply: DC12V/1500mA (Input 100V ~240V, 50/60Hz)
Electric Performance
Flash Memory: 64Mb Serial Flash
DDR3 Memory: 1Gb DDR3
Connector: F type,male
Frequency range: 950MHZ-2150MHZ
Input Impedance: 75Ω
Signal lever: '-65dBm~-25dBm
Active Ant Power: 13/18V DC 400mA MAX,Overload Protection
LNB switch control: 22KHz
DiSEqC: Ver 1.0/1.1/1.2
Front end: QPSK(S);QPSK,8PSK,16APSK,32APSK(S2) QPSK(S);QPSK,8PSK,16APSK,32APSK(S2)
Modulation range : 2Mbps~45Mbps
SCPC and MCPC Capable:YES
Spectral inversion: Auto conversion
Packing Detail
Product Size:95*155*45 MM
Weight:0.5 Kg (N.W.)/0.85Kg (G.W.) Output Interface: LNB IN*1, DV OUT, AV OUT, AV IN, USB,Power supply
HD: HD(up to 1080P) output
Package included:
1xDigital satellite meter(Freesat V8 Finder)
1xUser's manual
1xAV cable
1xCar charger cable
1xPower Adapter
1xCarrying bag 8.strap of carrying bag
