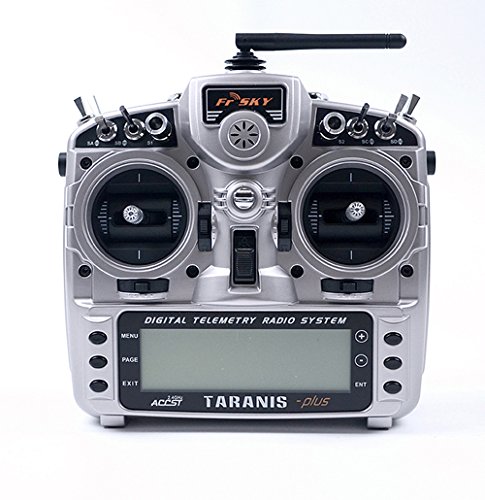

FrSky Taranis X9D Plus 2.4GHz ACCST Radio & X8R Rx Receiver Combo Mode 2; Color Box

Model Name:Taranis X9D Plus
Specifications: Model Name: Taranis X9D Plus
Number of Channels: Up to 16 channels
Operating Voltage Range:6~15V (2S, 3S Lipos are acceptable)
Operating Current: 260mA maximum (both RF module and backlit are on)
Operating Temperature: -10~60
Backlight LCD Screen: 212*64, 2 color combinations for select Model Memories: 60 (extendable by SD card)

Compatibility: FrSky X series, D series and V8-II series receivers (plus other receivers if an
external module is used) Taranis X9D Plus-EU version is only compatible with X series receiver EU version.

Model Name: X8R-PCB
Specifications:
Dimension: 46.47*26.78*14.12mm (L *W *H)
Weight: 16.6g
Number of Channels: 16CH (1~8ch from conventional channel outputs, 1~16ch from SBUS port or combine
two X8R to become a 16 channels receiver) With RSSI PWM output (0~3.3V)
Operating Voltage Range: 4.0~10V
Operating Current: 100mA@5V
Operating Range: full range (>1.5km)

Firmware Upgradeable Compatibility:
FrSky DFT/DJT/DHT/DHT-U in D_mode FrSky Taranis X9D Plus/XJT in D8 mode FrSky Taranis X9D Plus/XJT in
D16 mode X8R-EU version only works with FrSky Taranis X9D Plus-EU version/XJT-EU version in D16-EU mode.

Package Included:
1 x transmitter (Default Mode 2)
1 x X8R Receiver
1 x battery
1 x charger (110v-240v)
1 x manual
1 x neck strap
