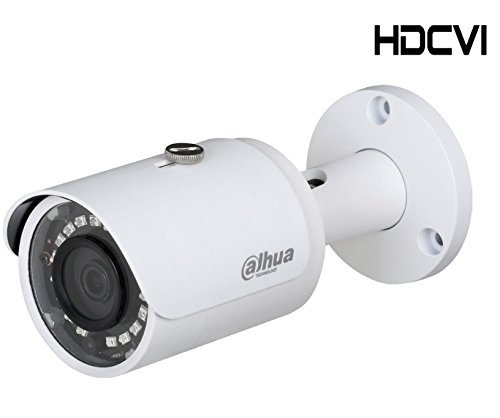

For Dahua HAC-HFW1200SP 2MP HDCVI IR Bullet Analog Camera 1080P IP67 DC12V 3.6mm Fixed Lens
Product Description
For Dahua HAC-HFW1200SP 2MP HDCVI IR Bullet Analog Camera 1080P IP67 DC12V 3.6mm Fixed Lens
- 1/2.7" CMOS 2MP Camera ~ Max 30fps@1080P ~ Max. IR length 30m, Smart IR
- The camera is designed with microcrystalline LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua's unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.
- The camera is protected against water and dust with IP67 ranking,making it suitable for indoor or outdoor environments. With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments.
- The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.
- The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera to be compatible with not only HCVRs but also most end users' existing HD/SD DVRs.
Camera
Image Sensor : 1/2.7" CMOS
Effective Pixels : 1920(H)×1080(V), 2MP
S/N Ratio :More than 65dB
IR Distance : Up to 30m (98feet)
IR On/Off Control : Auto / Manual
IR LEDs : 18
Lens
Focal Length : 3.6mm
Max Aperture :F2.0
Video
Resolution : 1080P (1920×1080)
Frame Rate : 25/30fps@1080P, 25/30/50/60fps@720P
Video Output : 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night : Auto (ICR) / Manual
OSD Menu : Multi-language
BLC Mode : BLC / HLC / DWDR
Gain Control : AGC
Noise Reduction : 2D
White Balance : Auto / Manual
Smart IR : Auto / Manual
Power Supply : 12V DC ±25%
Power Consumption : Max 3.9W (12V DC, IR on)
Operating Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Storage Conditions : -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance : IP67
