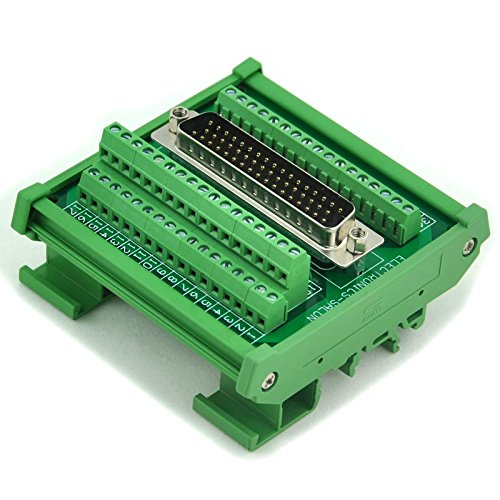

Electronics-Salon D-SUB DB50 Male DIN Rail Mount Interface Module, Breakout Board.
Product Description
Electronics-Salon D-SUB DB50 Male DIN Rail Mount Interface Module, Breakout Board.
- D-SUB DB50 male header connector.
- Pitch 3.81mm/0.15" screw terminal block.
- Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use.
- High quality PCB housing/carrier. FR-4 fiber glass PCB, dual copper layers.
- External dimensions: 87 x 82.5 x 43mm(W x L x H). PCB dimensions: 72 x 80mm(W x L).
Din Rail Mount DB50 Male Interface Module.
D-SUB DB50 male header connector.
Pitch 3.81mm/0.15" screw terminal block.
Din rail mountable - for width 35 / 32 / 15mm rails.
Din mount case can be taken apart for panel mount use.
High quality PCB housing/carrier.
FR-4 fiber glass PCB, dual copper layers.
External dimensions: 87 x 82.5 x 43mm(W x L x H).
PCB dimensions: 72 x 80mm(W x L).
100% new, never used.
Rated voltage: 60V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range - 26-16AWG.
Strip length - 5mm.
Screws - M2,steel,Cr3+ Zn plated.
Torque - 0.2Nm (1.7Lb-In.).
Pin header and Cage - Brass.
　
Technical Specifications
