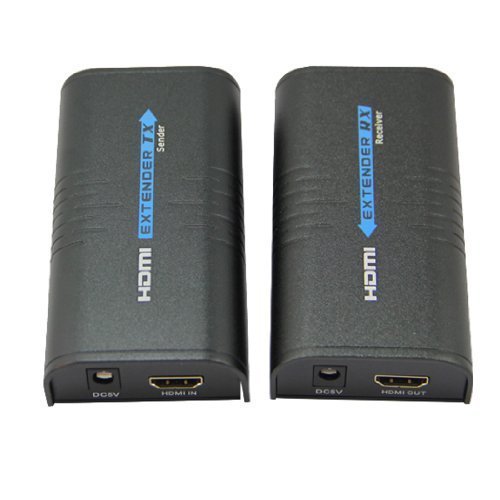

Eazy2hD LKV373 up to 120m/393ft HDMI Extender over Single Cat5/5E/6 Cable Unlimited Extension Support Resolution up to Full HD 1080P
Product Description
Eazy2hD LKV373 up to 120m/393ft HDMI Extender over Single Cat5/5E/6 Cable Unlimited Extension Support Resolution up to Full HD 1080P
- Extend HDMI up to 100 Meters for 1080P over one CAT5E/6 Cable, follow the Standard of IEEE-568B
- Designed to convert HDMI signal to standard TCP/IP and transmit by internet cable or Lan. With the advantage of TCP/IP standard
- Extend HDMI signal to infinity distance by adding one more Ethernet router
- Apply M-Jpeg technique to process image compressing, and with little image quality loss, HDCP Compliant
- Full HD 1080P Lossless: In addition to this amazing technology, all displays connected will receive a picture-perfect
LKV373 is designed to convert HDMI signal to standard TCP/IP and transimit by internet cable or Lan. With the advantage of TCP/IP standard,it can transmit HDMI signal source from HD STB,DVD,PS3,HDMI display card etc to HD projector, DLP, LCD, LED and other audio visual equipments.
Specifications:
Size: 11CM*5.8CM*2.6CM
Working Temperature: -10C to 60C
Power Consumption: 3W(max) each
Cable Length: extend 80M by CAT5, 100M by CAT5E, 120M by CAT6
Questions and Answers:
Q: The yellow indicator light of LAN interface flicker but very slow?
1 Reversal connections of the HDMI Extender TX and HDMI Extender RX
2 Check whether there is signal input
3 Change the HDMI input cable of the Extender TX
Q: The yellow indicator light of LAN interface flicker but very fast but no HDMI image output.
1 If HDMI Signal device use computor video card, please conform that your display support the resolution of the computor video card, change the resolution of the video card.
2 Please check the HDMI cable of the RX, ensure this cable is not damage or change this cable to test again.
Q: The yellow indicator light of LAN interface is not lighting.
1 Check whether the cable is conduction.
2 Your Cable is too long.
Q: The image is not normal or flicker
1 Please press the RESET button.
2 Please conform the order of the cable is 568B.
Package includes:
1 * HDMI Extender Sender
1 * HDMI Extender Receiver
2 * Power Adapter(with US Plug)
1 * User Manual
Technical Specifications
