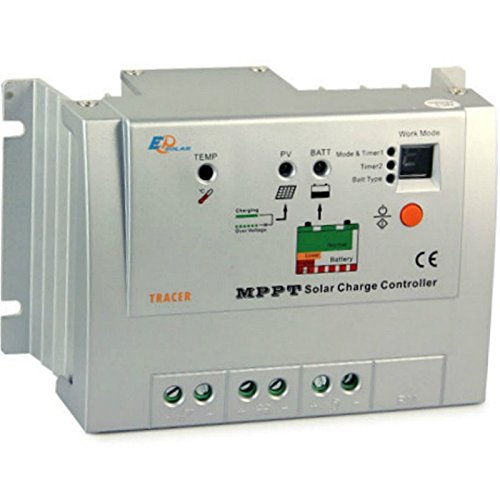

EPSolar Tracer-1210RN MPPT 10A Solar Panel Regulator Charge Controller 12/24v Auto Work for Off Grid Battery Charging
Product Description
EPSolar Tracer-1210RN MPPT 10A Solar Panel Regulator Charge Controller 12/24v Auto Work for Off Grid Battery Charging
- MPPT technology; Excellent thermal design and nature air cooling; CE certificate;
- Peak conversion efficiency of 97 %; High Tracking efficiency of 99%; Several seconds tracking speed;
- Very fast Sweeping of the entire I-V curve; 4- Stage charge with PWM output; Temperature compensation function;
- Full power output in ambient temperatures up to 45 degree; Sealed, Gel, Flooded battery type optional; ON/OFF, Dusk to dawn, 1-15h timer;
- Diversified load control: Manual, Dusk to Dawn, Dual timer, TEST; Max PV input power 130W for 12V system, 260W for 24V system;
Features:Â
·MPPT technology
·Peak conversion efficiency of 97%
·High Tracking efficiency of 99%
·Several seconds tracking speed
·4-Stage charge with PWM output
·Nature convection cooling
·Full power output in ambient temperature up to 45 ℃
·Temperature compensation
·Sealed, Gel and Flooded battery option
·Widely used, automatically recognize day/night
·Diversified load control
·RJ45 interface &optional meter
·2 years warranty
·CE certificate
Electronic Protections :
·PV array short circuit
·Over discharging
·Over charging
·Load overload
·Load short circuit
·PV reverse polarity
·Battery reverse polarity
Specifications:
Model:Tracer-1210RN
Rated system voltage:12/24V auto work
Rated battery current:10A
Rated load current:10A
Max battery voltage:32V
Max.PV open circuit voltage:100VDC
Max.PV input power:12V 130W; 24V 260W
Self-consumption:
Technical Specifications
