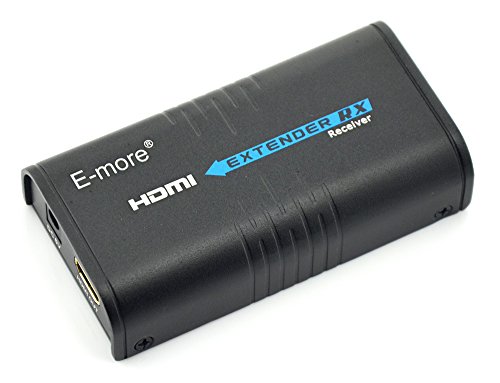

E-More New LKV373 HDMI 1080P Receiver Over Ethernet LAN RJ45 CAT5E CAT6 For HD 1080P DVD PS3 Projector up to 100-120 meters Unlimited Extender HD011H-H23 (Receiver)
Product Description
E-More New LKV373 HDMI 1080P Receiver Over Ethernet LAN RJ45 CAT5E CAT6 For HD 1080P DVD PS3 Projector up to 100-120 meters Unlimited Extender HD011H-H23 (Receiver)
- It can transmit HDMI 1080P signal to above 100M (330FT) by using UTP Cat5e6.
- Supports TCP/IP, extends HDMI signal unlimitedly over router or hub/switch.
- Follow the standard of IEEE-568B, HDCP compliant.
- Apply M-Jpeg technique to process image compressing, and with little image quality loss.
- Supports resolutions up to 1080p Full HD; Supports Ethernet bandwidth: 100M. It can transmit HDMI 1080P signal to above 120M by using UTP CAT6.
Overview:
This LKV373 HDMI receiver is designed to convert HDMI signal to standard TCP/IP and transmit by CAT5e/6 Cable or LAN. With the advantage of TCP/IP standard, it can transmit HDMI signal source from HD STB,DVD,PS3,HDMI display card etc to HD projector, DLP,LCD,LED and other audio visual equipments. It needs to match our LKV373 sender to use.
Extends by Router connection or LAN connection, Cable length requirements are as follows:
1. CAT5 Maximum 80 meters between two Devices
2. CAT5e Maximum 100 meters between two Devices
3. CAT6 Maximum 120 meters between two Devices
Specification:
1. Supports resolutions: 480i@60Hz,480p@60Hz,576i@50Hz, 576p@50Hz,720p@50/60Hz, 1080p@50/60Hz
2. Device Type: HDMI Extender Over Ethernet LAN RJ45 CAT5 CAT6 For HD 1080P DVD PS3 up to 260FT
3. Interface Type: HDMI, Ethernet LAN RJ45
4. Link Connector(Sender/Receiver): UTP/STP CAT5e/6
5. Power Consumption: 3W (max) each
6. Relative Humidity: 20%~90%
7. Power Supply: DC 5V/1A
8. Dimensions: 110 x 58 x 26 mm
9. Weight: 239 g
Notes:
1. It needs to match our LKV373 sender to use. This listing only include a Receiver (not include sender).
2. This item is only new 3.0-Version, before you buy it, please check the version for your sender(transmitter), if your sender is old version, please don't buy it.
Package Contents:
* 1 X E-More HDMI Extender Receiver
* 1 X DC 5V/1A power Supply
* 1 X User Manual
