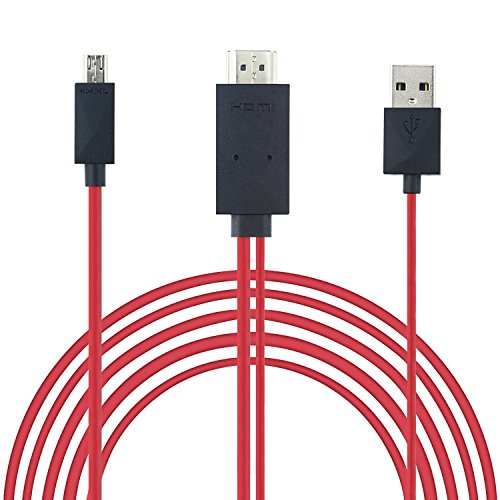

E-More® Hight Quality 2M MHL Micro A V8 USB Male to HDMI Male 1080P HDTV Adapter Converter Cable for Samsung Galaxy S3 S4 S5 Note2 Note3 I9500 I9300

How to use it?

1. Connect the Micro USB(MHL) cable into your cell phone or tablet.

2. Connect TV through the HDMI port,switch the TV to HDMI channel.

3. Connect the USB cable to a power adapter(at least 5V 1A) to supply power for the HDMI connector,you had better use the original adapter.

4. Restart your device after the whole connection finished.




Specification:

1. Interface: MHL specifications v.1.0

2. Bandwidth: 25 MHz - 75 Mhz

3. Connectors: micro USB (in). HDMI (out). USB 2.0 (power)

4. Video: 1080p HD

5. Audio: 8-channel (e.g.7.1 surround) digital audio

6. Power supply: 5V DC.up to 1A from USB 2.0

7. Cable lengh: 2.0M

8. Dimensions: 120*120*26MM

9. Net weight: 52g




Compatible devices:

1. Smartphone:

- Galaxy S5, S4(i9500, i9505), S3(i9300, i9305)

- Samsung Galaxy Note 3: N5100 N9000 N9006

- Samsung Galaxy Note 2: N7100 N7105

2. Tablet: Galaxy Tab 3 8.0 T310, Tab 3 10.1 P5210, Note 8 N5110, Note Pro




Notes:

1. Do not connect the MHL Adapter to your device through the Desktop dock. The video output will not work properly.

2. Any incoming calls or messages will pause the media. After taking the calls or acknowledging the messages, the media will resume playing.

3. After connecting the MHL cable, the upper and lower sides of the TV/Monitor's screen may be cut off. If this happens, adjust the video settings on your HDTV and check your user manual for details.

4. For a smoothly use, please ensure the juice of your devices is more than 40% capacity.




Package Contents:

* 1 X E-More MHL to HDMI and USB Power Cable




Any problem please feel free to contact us first so that we can supply the best service for you.
