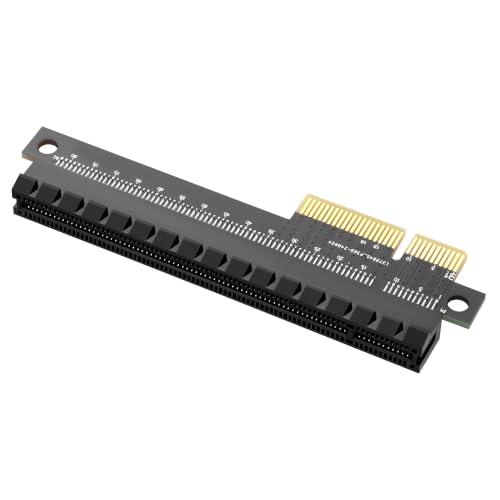

ELFJMZP PCIe Adapter x4 to x16 Physical Slot – Card, Fits All x16 Devices with Bandwidth Limitations Noted

ELFJMZP PCIe Adapter x4 to x16 Physical Slot – Card, Fits All x16 Devices with Bandwidth Limitations Noted

• Key Function: Physical adaptation of X16 devices to X4 interfaces: This adapter card provides physical interface conversion from PCIe X4 pins to an X16 slot, enabling devices that would normally only fit into an X16 slot (such as graphics cards, RAID controllers, 10 Gigabit network cards, video capture cards and NVMe expansion cards) to be installed in the motherboard’s sole X4 slot, thereby completely resolving the issue of interface size mismatch.
• The product automatically negotiates to operate at an X4 channel rate (approximately 4 GB/s under PCIe 3.0 and approximately 8 GB/s under PCIe 4.0), and the system will recognise this as X4 mode. It is suitable for devices whose bandwidth requirements do not exceed the X4 limit, such as 10 Gigabit network cards, SAS array cards, capture cards, sound cards and NVMe SSDs, with no perceptible loss of performance.
• Signal integrity design ensures stable transmission: The use of multi-layer PCB boards, combined with an equal-length trace design for differential signals, effectively controls impedance and reduces signal reflections. The gold-plated gold fingers enhance resistance to oxidation, ensuring the stability of high-speed data transmission and reducing the risk of card ejection and blue screens.
• Pure hardware conversion, plug-and-play: No drivers required; conversion takes place directly at the hardware level, and the system recognises the device automatically. Supports major operating systems including Windows, Linux and macOS (for specific devices). Suitable for desktop computers, workstations, servers and various DIY modification scenarios.
• ⚠️ Power Supply Notes: Suitable only for devices with sufficient power from the motherboard: This card does not provide auxiliary power; power is supplied entirely via the motherboard’s X4 slot (the standard X4 slot has a power delivery capacity of approximately 25W). Suitable for: network cards, RAID cards, capture cards, sound cards, low-power computing cards, etc. Not suitable for: gaming graphics cards requiring external power and high-power professional cards.
