Dovewill MAX31855 K Type Thermocouple Breakout Board Temperature Measure 0℃～ 1024℃
Product Description
Dovewill MAX31855 K Type Thermocouple Breakout Board Temperature Measure 0℃～ 1024℃
- Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference
- Measure a wider temperature measurement range
- Can be easily interfaced with any microcontroller, even one without an analog input
- Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard)
- The MAX31855 is not pin compatible or drop-in code compatible with the MAX6675
Description:
Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference
Measure a wider temperature measurement range
Can be easily interfaced with any microcontroller, even one without an analog input
Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard)
The MAX31855 is not pin compatible or drop-in code compatible with the MAX6675
Specification:
Material: Electronic components
Size: Approx. 20.3x20.3x5mm/ 0.80x0.80x0.20inch
Temperature Measurement Range: 0℃～ 1024℃
Converter Temperature Resolution: 0.25°C
Voltage Range: 3. 0～5. 5V
Working Current: 50mA
Working Temperature: -20℃～ 85℃
Module Board Size: Approx. 15x28mm/ 0.59x1.10inch (Screw Hole Dia. 3mm/ 0.12inch )

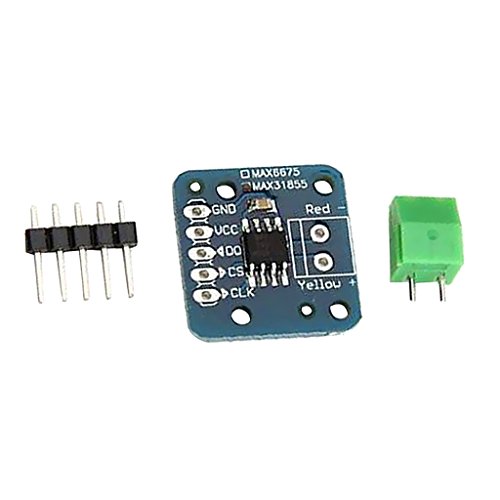

Package Includes:
1 piece Thermocouple Breakout Board
1 piece Pin Header
1 piece Terminal
Note:
Please allow 1-3mm error due to manual measurement, make sure you do not mind before you bid
The colors may be different for the different display, please understand
