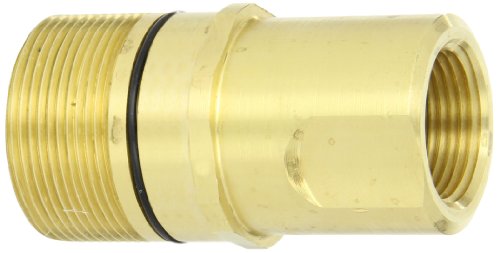

Dixon Valve W8F8-B Brass Wingstyle Interchange Hydraulic Fitting, Nipple, 1" Coupling, 1" - 11-1/12 NPTF Female Thread
Product ID: B00DE91Z4E
Condition: New
$ 143
includes Duties & VAT
Delivery: 10-20 working days
Ships from USA warehouse.
Secure Transaction
VISA
Mastercard
ozow
Product Description
Dixon Valve W8F8-B Brass Wingstyle Interchange Hydraulic Fitting, Nipple, 1" Coupling, 1" - 11-1/12 NPTF Female Thread
- Machined components are manufactured using brass bar stock
- Made of brass
- Nitrile (Buna-N) seals are standard, providing a temperature range of -40 degree F to +250 degree F
- External O-Ring on plug indicates full connection and acts as a contamination shield in connected mode
- Maximum pressure 3000 psi
Dixon Valve W-series brass wingstyle interchange hydraulic fitting nipple. Machined components are manufactured using brass bar stock. Made of brass. 3.55-inches length. 3000 pounds-per-square-inch pressure. Nitrile (Buna-N) seals are standard, providing a temperature range of -40 degree F to +250 degree F. Main coupler valve has a bonded face-seal to improve seal integrity during pressurized connection/disconnection. External O-Ring on plug indicates full connection and acts as a contamination shield in connected mode. Redundant O-Ring on the coupler body will engage nipple for secondary sealing support.
Technical Specifications
Country
USA
Brand
Dixon Valve & Coupling
Manufacturer
Dixon Valve & Coupling
Binding
Misc.
ItemPartNumber
W8F8-B
Model
W8F8-B
Size
1" x 1"
UnitCount
1
