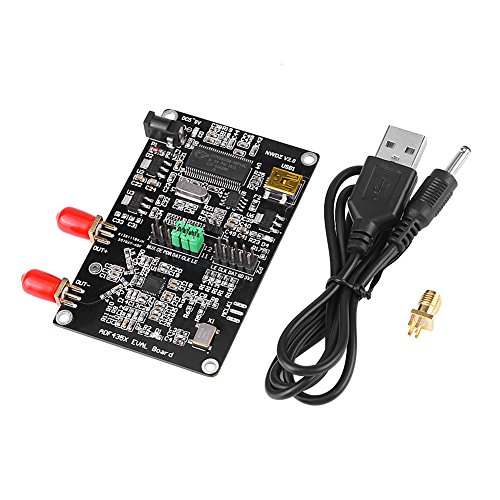

Development Board with Micro Controller, ADF4351/ADF5355 Microcontroller Board 35M-4.4G Signal Source Compatible to Arduino, W5100 Shield Network Expansion Board

The ADF4351 has an integrated voltage controlled oscillator (VCO) with a fundamental frequency range of 2200 MHz to 4400 MHz. Using 1/2/4/8/16 frequency division circuit, can produce RF output frequency as low as 35M-4.4G.

For isolation applications, the RF output level can mute. Mute function can be controlled either by pin or software. It also provides auxiliary RF output and can be turned off when not in use.

Specifications:

Output Frequency Range: 35MHz-4.4GHz

Power Supply: DC002 Interface DC4-9V(typical 5V)

Output Signal: 2.2-4.4G fundamental wave (sine wave), 35M-4.4G fundamental division (square wave)

Signal Output Connector: SMA female

Size: 48×37mm/1.89×1.45inch

Packaging: antistatic bags
Weight: 11g/0.024lb



Package List:

1× Signal Source Development Board

1× USB Cable

1 x Sma Holder



Note:

1, Please allow small errors in the dimensions due to accidental imprecise manual measurement.

2, For this electronic product, pls care don't touch the water when you use it, or the circuit will be damaged and has a shorter service life.
