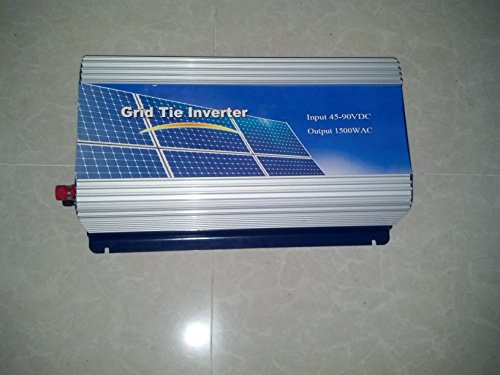

Decen 1500w High Efure Sine Wave, 45-90vdc,220vac,60hz for Home Solar Systemficiency on Grid Tie Inverter Output P

The small type solar grid tie power inverter can obtain the solar energy from solar panel, and can tie to the grid through its output cable with no extra equipment. The installation is very convenient and reliable.





We call the system combining with small solar grid tie power inverter and solar panels as 'SGPV'. The system includes solar panels and small type grid tie power inverter. Solar panels can be mono silicon, polygon silicon, non-crystal film or any other material that can transform solar energy to electric energy. The power of grid tie inverter should be matched to the power of solar panels connected. So the power of SGPV is defined by its solar panels, it can be standardization according to the actual using.





The inverter can be connected to any outlet at home, when this line run by the conventional electric network. The small grid tie monitors the volume, frequency and phase of the home grid, then produce a pure sine wave that the frequency and phase are as same as the grid's, and the volume is a bit higher than the grid's, then according to the current controlled PWM, to control the output power to the grid. The small grid tie inverter just puts out power when the home grid is on.



parameter

*Model solar1500W-4

*Normal AC Output Power 1380W

*Maximum AC Output Power 1500W

*AC Output Voltage 90V ~ 160V

*AC Output Frequency 46Hz ~ 65Hz

*Power Factor 0.99

*DC Input Voltage 45V ~ 90V

*Peak Inverter Efficiency 92%

*Standby Power consumption
