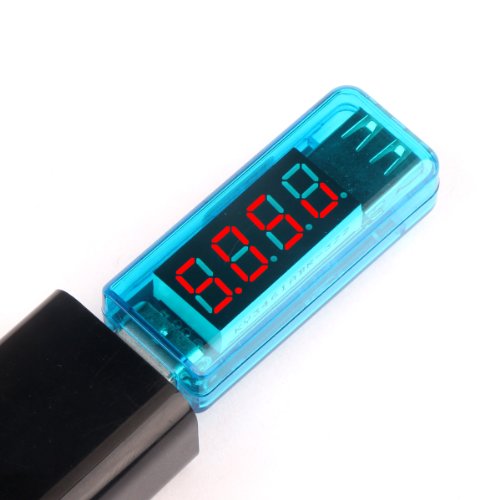

DROK® USB Digital Multimeter DC 3-8V 3A Volt Amp Meter, Voltage and Current Tester Charging Monitor, LED Display Support Universal Data Sync
Product Description
DROK® USB Digital Multimeter DC 3-8V 3A Volt Amp Meter, Voltage and Current Tester Charging Monitor, LED Display Support Universal Data Sync
- Operating voltage range: 4.5 - 5.7V DC; Operating current range: 0 - 3A
- Voltage accuracy: + / -0.5%, resolution: 0.01V; Current accuracy: + / -1%, resolution: 0.01A
- Sense resistor: 10mΩ; Static power consumption: 20mA; Dimensions: 43x25x11mm
- Full charge off automatically, to avoid overcharging; Overvoltage/Overcurrent protection
- A great tool for testing phones, tablets, USB ports, power supply, charger outputs, and current demands of USB devices
The USB power meter can be used to display a variety of USB power adapter, car charger or mobile power supply output voltage current and power, can also be used to diagnose the quality of USB port contacts, the quality of USB cables, as well as to assess the capacity of mobile power.
Features:
The use of low-power single-chip 10bit ADC SCM
LCD screen can display various data clearly and accurately
USB voltage meter, current meter and power tester
Full charge off automatically, to avoid overcharging
Ultra-low current-sense resistor effectively reduce the pressure drop
Overvoltage protection and alarm (Max 5.7V)
Overcurrent protection (Max.3A)
Specifications:
Operating voltage range: 4.5 - 5.7V DC
Operating current range: 0 - 3A
Voltage detection accuracy: + / -0.5%, resolution: 0.01V
Current detection accuracy: + / -1%, resolution: 0.01A
Sense resistor: 10mΩ
Static power consumption: 20mA
Dimensions: 43x25x11mm
Package include:
1x USB power Monitor
