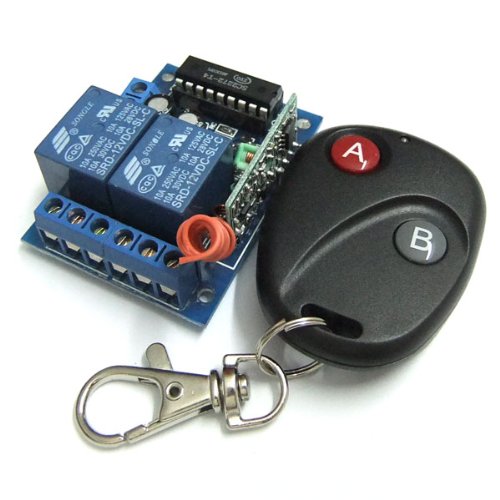

DROK Industrial Wireless Garage Door Remote Control 12V DC 2-Channel Switch Board Self-Lock Controller

Self-locking type:
Output data to achieve the trigger flip state. Successfully received the data can have been
Maintain the state of the corresponding level. Remote data changes until the next time change.
Each self-locking independent of each other, can remote control multi-channel, such as lighting control.

The remote control for anti-theft alarm, remote control electric windows, signal control, industrial control, lifting equipment, Electrical control circuit, etc.
Remote control switch module relay contact Independent output, Very suitable for direct control of various types of load; Wireless remote control with fixed code coding technology, No direction, switches without disturbing each other.

Each Receiver can withstand 10A maximum current, Direct drive AC loads, each with a set of relays are normally open (normally closed) contacts. To extend the life of Receiver is not recommended to control the power load, the proposed control of power per channel at 1000W (resistive load); 600W (inductive load); 400W (motor load) below.

Receiver parameters:
Contact capacity: < / = 10A/250VAC; 10A/30VDC
Receiver sensitivity:>-105dB
Control approach: two normally open (normally closed) contacts
Encoding type: fixed code; pad code
Module size: 55 × 40 × 20mm
Shock resistance: 270K

Remote control parameters:
Operating Current: < / = 10mA
Encoding type: fixed code; pad code
Dimensions: 51 × 39 × 13.5mm
Oscillation resistance: 4.7M

Package includes:
1x Receiver Board
1x Remote Controller
