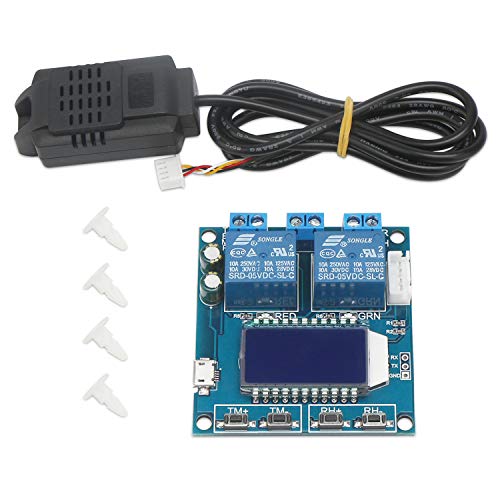

DROK Humidity and Temperature Controller, Digital Thermometer Hygrometer Control Module Dual Outputs -20℃~60℃ 00%~100% RH LCD Automatic Constant Temperature Humidity Regulator Board

Parameter:
Temperature range: -20°C ~ 60°C
Humidity range: 00%~100%RH
Control accuracy: 0.1°C, 0.1%RH
Detection probe: integrated sensor
Output type: relay output
Output capacity: maximum 10A
Dimension: 57*60*20mm

Functions:
1. Temperature function:
   Automatic recognition of working mode
   Cooling
   Heating
   Temperature correction function
2. Humidity function:
   Automatic recognition of working mode
   Dehumidifying
   Humidifying
   Humidity correction function
3. Remotely reading/setting of parameters
4. Real-time reporting of temperature/humidity
5. Relay enable function (enabled by default)


Set Parameter:
1. Working Mode:
The system automatically recognizes the working mode according to the starting/stopping temperature and the starting/stopping humidity.
2. How to set the starting/stopping temperature function?
Hold press the "TM+"/ "TM-" button for more than 3 seconds to enter the startup/stop temperature setting interface. The parameters can be changed by the "TM+" and "TM-" buttons. After the parameters are changed, wait for 6s and it will automatically save and exit.
3. How to set the starting/stopping humidity function?
Hold press the "RH+"/"RH-" button for more than 3 seconds to set the minimum/maximum value of humidity. The parameters can be changed by "RH+" and "RH-" buttons. After the parameters are changed, wait for 6s and it will automatically save and exit.

Package Including:
1x Humidity and Temperature Controller
