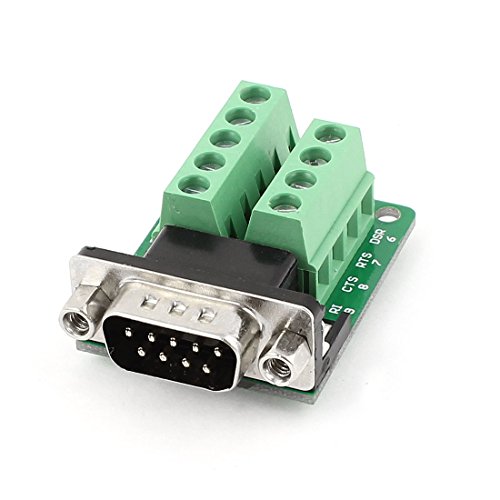

DB9 Male Adapter Plate RS232 Serial to Terminal Board Signal Module
Product ID: B00WW6Z3KW
Condition: New
Sold Out
Product Description
DB9 Male Adapter Plate RS232 Serial to Terminal Board Signal Module
- Product Name : DB9 Adapter;Terminal Wire Range : 12-24AWG
- Total Size : 45 x 31 x 16mm/1.8" x 1.2" x 0.63"(L*W*H);Hole Diameter : 3mm
- Hole Center Distance : 6mm;Material : Metal, Electric Part
- Color : Green;Weight : 25g
- Package Content : 1 x DB9 Adapter
DB9 male adapter, RS232 Serial DB9 9pin to 9Position Screw Terminal Block Connector.1(DCD), 2(RXD), 3(TXD) 4(DTR), 5(GND), 6(DSR) , 7(RTS), 8(CTS), 9(RI) signal line was all lead out, name and number clearly labeled.12-24AWG wire range, 5.08mm pitch, 2.5mm screw diameter, you need use the 2.5mm width slot screwdriver.All-copper DB9 Socket, anti-oxidation, contact better.The adapter used for communication debug.
Technical Specifications
Country
USA
Brand
uxcell
Label
uxcell
Manufacturer
uxcell
MPN
a15011600ux0288
NumberOfItems
1
PartNumber
a15011600ux0288
Publisher
uxcell
Studio
uxcell
