Controller Board Driver kit for LCD Panel LP154WX4(TL)(AB) TV+HDMI+VGA+USB

Note:Before placing the order ,pls make sure your LCD Model Number is the same as that of the title.
If not ,Pls help tell me your LCD Model Number,which is very important ,the Model Number is on the back of the LCD ,then I can send the right controller board to you, thanks!

Description:
T.V56.03 is analog TV control board,which is suitable for Asia-Pacific and Middle-East market.It can support less than 22 inch LCD panels which resolution is up to 2048X1152.

T.VST56.03 support six kinds of main chip: TSUMV29LU, TSUMV29LE, TSUMV39LU, TSUMV39LE,TSUMV59XU, TSUMV59XE, differences are in the following table.

This specification is only for T.V56.03 with main chip TSUMV59XU or TSUMV59XE.

Parameters:
Board Language: English, Simplified Chinese,Spanish,French,Geman,Italian,Portuguese
Board ports: HDMI, TV(IEC) ,AV,USB, VGA , PC audio
Speaker support: YES,support 3W/5W/10W (speakers excluded, should buy extra)
Speaker Power: 5W , about 3 times more than laptop speakers (1.5Wx2) Signal type: LVDS
Factory setting log in: IR Controller Menu button---Press 1147 --- General setting
TV color system: PAL
TV Receive Frequency 49mhz to 863Mhz
HDMI : 1080P max, decode Range 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Screen Power supply option:3.3V, 5V, 12 V, do voltage cap jumps
Resolution: Max 1920x1200 60Hz. if you want change driver board at different resoluton, contact us for reprogramme files.
Packaging method:
Customized enhanced pacakge box

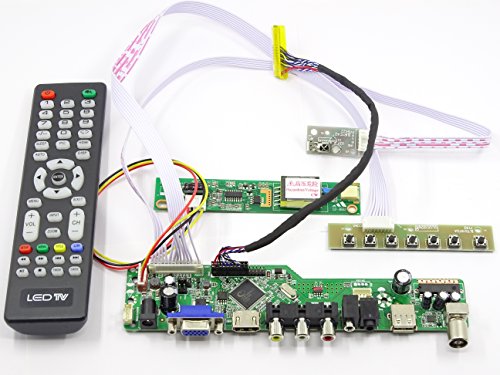

Packaging includes:
1 x HDMI+USB+AV+VGA board
1 x 7KEY IR menu board
1 x IR remote controller
1 x Inverter
1 x LCD cable
0 x 12V 3A power adapter
0 x 5W speaker
0 x U flash disk, buy extra from other seller
0 x LCD screen, buy extra in store
