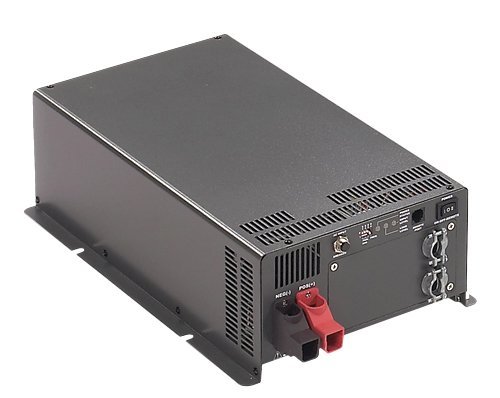

COTEK St1500-124 Pure Sine Wave Inverter with Transfer Switch 1500 Watts 24 Vdc 120 Vac

This high efficiency microprocessor controlled DC-AC inverter converts 12 Volts DC (Nominal) to 1500 Watts of pure sine-wave AC power. Input battery cable lugs are provided and the AC output is obtained through hardwire connection. Features include overload, short circuit, over-temperature, under & over voltage protections.

• Switch selectable Power Save Mode (Sleep Mode)
• Remote on/off control through external contact closure by mechanical/transistor switch
• Includes Ignition Lockout and Reverse Over-ride Function (ROF)
• Input and output are fully isolated
• Advanced micro-controller
• Load controlled cooling fan saves power consumption
• 3 tri-color LEDs display operational status and fault indications

• Output Volatge: 120 VAC +/- 5%
• Output Frequency: 50/60 Hz (Switch selectable)
• Total Harmonic Distortion: < 3%
• Peak Efficiency: 91%
• AC Output Connections: Terminal Block for hard wiring
• Nominal DC Input Voltage: 24 VDC
• DC Input Voltage Range: 21 to 30 VDC
• DC Input Current At No Load (Power Save enabled) 0.15A
• DC Input Current At No Load (Power Save disabled) 0.75A
• DC Input Connections: M-8 nut & bolt/Wire with M-8 ring lug terminal
• AC Input Connections: Terminal Block for hard wiring
• Optional Remote Control: S-R8 or S-R6-24
• Forced Air Cooling: 1 fan. Will switch on/off at specified values of load
• Operating Temperture Range: 32°F to 104°F
• Storage Temperture Range: -22°F to 158°F
• Dimensions: 9.29" x 15.9" x 4.53"
• Weight: 15.4 lbs
