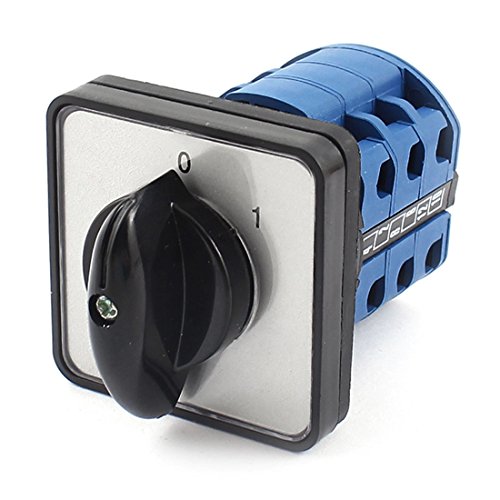

CA10 AC 660V 12A 12 Terminals 2-Position Rotary Cam Changeover Switch
Product Description
CA10 AC 660V 12A 12 Terminals 2-Position Rotary Cam Changeover Switch
- Product Name : Changeover Switch;Model No. : CA10;AC-1 : AC 380V 16AAC 660V 12A;AC-23(3PH, 1PH) : AC 220-240V 3.7KW 2.5KWAC 380-440V 7.5KW 3.7WAC 660V 7.5KW 4W
- AC-3(3PH, 1PH) : AC 220-240V 3KW 2.2KWAC 380-440V 5.5KW 3WAC 660V 5.5KW 3W;AC-11 : AC 220-240V 12KWAC 380-440V 4WAC 660V 2W;AC-21(Ith) : AC 220-240V 20AAC 380-440V 20AAC 660V 20A;Terminals : 12 Screw Terminals
- Positions : 2 Positions(0-1);Pole Numbers : 3 Pole;Panel Size : 50 x 50 x 10mm/2" x 2" x 0.4"(L*WT);Body Diameter : 4.4cm /1.4"
- Overall Size : 50 x 50 x 77cm / 2" x 2" x 3"(L*W*H);Mount Hole Dia : 3.5mm/0.14";Mount Hole Center Distance : 37mm/1.4"
- Total Weight : 114g;Net Weight : 94g;Package Content : 1 x Changeover Switch
- Feature plastic external material, 2 positions , locking action type, 12 screw terminals, fit for 1cm panel thickness.
- Changeover switch mainly suitable for electrical wiring in the power switch and Squirrel cage type asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit.
Technical Specifications
