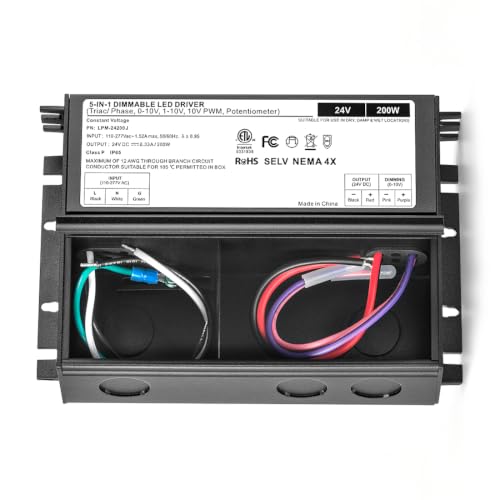

BTF-LIGHTING 200W Dimmable LED Driver Power Supply 24VDC Transformer,5-in-1

BTF-LIGHTING 200W Dimmable LED Driver Power Supply 24VDC Transformer,5-in-1

• 【5-in-1 Dimming & Performance Advantages】BTF-LIGHTING 200W LED Driver:5-in-1 dimming (TRIAC Leading/Trailing Edge, 0-10V, 1-10V, PWM, potentiometer). 0.1%-100% flicker-free dimming with 4000Hz PWM output. Built-in short-circuit, over-temperature, over-load protection, stable at 10-100% load. Aluminum housing for efficient heat dissipation, usable in dry/damp/wet areas. Custom dimming curves, Title 24/JA8 compliant. ETL/FCC certified, with a screwless junction box for quick, tool-free wiring.
• 【Technical Specs & Flicker-Free Performance】This driver accepts 110-277V AC input, with DC24V/8.33A output. It offers stable voltage & load regulation, up to 90% efficiency, high PF (>0.95) and low THD (<10%). Operates from -40°C to +60°C with IP65 waterproof rating. It delivers smooth, flicker-free dimming without buzzing, plus full protections (short circuit, over-voltage, over-current, over-temperature) for safe, reliable LED operation.
• 【ETL LISTED SAFETY & DURABILITY】ETL listed and fully compliant with UL8750 safety standards. Class P offers overheat protection,Type HL features sealed moisture/dust resistance.Sturdy metal housing with basic water resistance ensures safe use in dry and mildly damp indoor areas.
• 【BTF-LIGHTING Screwless LED Driver, 4-Side Wiring, Heat Dissipation】Tool-Free Setup: Screwless junction box, press & pull to open/close, no extra tools/screws needed for wiring.Flexible Placement:4-sided wiring holes + side tabs, mount anywhere to fit your layout.Safe Cooling:Mount in vented area, 100mm spacing between drivers, vertical mount recommended to avoid overheating.Safety Isolation: Mobile baffle enables strong/weak electric isolation, adjustable space for safer, organized wiring.
• 【What It Does & Who It's For】This dimmable LED driver is designed for under-cabinet lights, display cabinets, bookshelves, toe-kick lighting, staircases, under-bed accent lighting, and halogen retrofits. Suitable for dry indoor locations only. Ideal for DIYers, smart home users (compatible with Lutron, Leviton, Kasa dimmers), electricians, contractors, homeowners, and interior designers seeking flicker-free, smooth dimming.
• 【5-Year Warranty & Professional Support】Purchase with confidence backed by our 5-year warranty. We are ready to assist with installation, compatibility or any other questions. For a more successful project, please consult BTF-LIGHTING support before purchase—we provide professional design solutions, circuit layout planning, and controller & power supply recommendations to improve your project results. Feel free to inquire with us anytime.
• 【Product Certifications & Wide Input: 110–277V AC】24VDC 8.33A 200W LED transformer – ETL listed, UL8750 compliant, Class P, Type HL rated, FCC compliant; Input: 110-277V,AC Current (Typ.) 2.13A
• 【Package included】1X Dimmable LED Driver.Note: An electronic instruction manual is available. Please scan the QR code printed on the junction box to view it.
