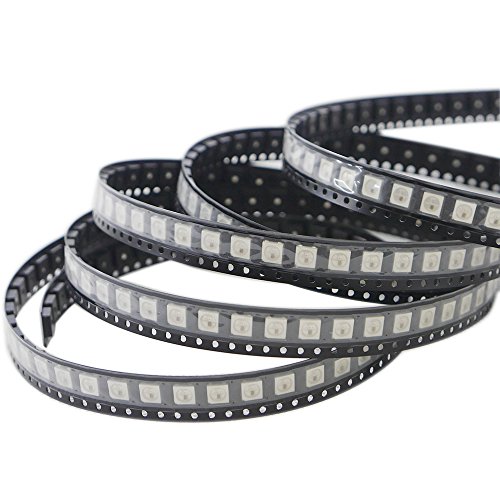

BTF-LIGHTING 100pcs WS2812B (4pins) 5050 SMD White version WS2812 Individually Addressable Digital RGB LED Chip 5V

Product Description:
Brief introduction:
WS2812b is an intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components.
It includes intelligent digital port data latch and signal reshaping amplification drive circuit.

Also include a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages.

The control chip integrated in LED above becoming more simple circuit, small volume, and convenient installation.

Please note this is a pack with 1000 individual LEDs.


Features:
1)Integrating control circuit and RGB chip
2)Built-in signal reshaping circuit
3)Built-in electric rest circuit and power lost reset circuit
4)256 brightness and 16777216 color display
5)Cascading port transmission signal


Specifications:
1)Chip color:White version
2)Power Supply Voltage: +3.5¡«+5.3V
3)Input Voltage: -0.5¡«VDD+0.5V
4)Red Vf: 1.8~2.2V
5)Green Vf: 3.0~3.2V
6)Blue Vf: 3.2~3.4V
7)Red Wavelength: 620~630 nm
8)Green Wavelength: 515~530 nm
9)Blue Wavelength: 465~475 nm
10)Red luminous intensity(20mA): 550~700 mcd
11)Green luminous intensity(20mA): 1100~1400mcd
12)Blue luminous intensity(20mA): 200~400 mcd


Applications:
1)Full-color module, Full color soft lights a lamp strip.
2)LED decorative lighting, Indoor/outdoor LED video irregular screen.

Package included:
1x 100pcs WS2812B SMD 5050 RGB LED Chip
