BGD A051001312 Recoil Starter Assembly for Echo SRM-225 and PAS-225

BGD A051001312 Recoil Starter Assembly for Echo SRM-225 and PAS-225

• Part Number Check: Intended for equipment using recoil starter assembly A051001312. Echo parts catalogs list this starter on selected SRM-225 and PAS-225 configurations. Verify the equipment model and serial-number range before ordering.
• Model References: Also listed for GT-225L, PE-225, PPF-225, PPF-235ES, PPT-235ES, SHC-225, SHC-225S, SRM-225SB and SRM-225U equipment. Confirm the starter number in the parts diagram for the specific unit.

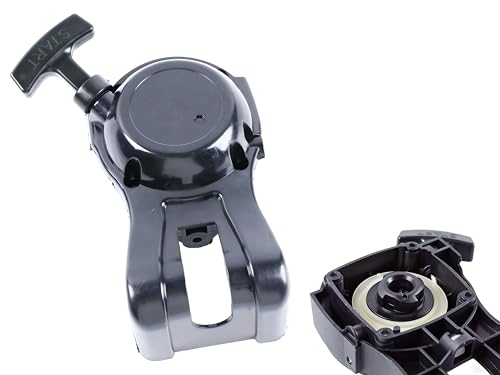

• Starter Assembly Layout: The unit combines a starter housing, pulley, recoil spring, pull rope and handle grip for the engine pull-start mechanism. Compare the assembly structure with the unit being serviced.
• Equipment Applications: Used on selected string trimmers, brush cutters, edgers, hedge trimmers and power pruners that specify A051001312. This listing is for the recoil starter assembly, not the complete engine or outdoor power tool.
• Fit Check Before Purchase: Compare the housing outline, mounting-hole pattern, rope exit direction and starter engagement area with the assembly currently installed. A matching model name alone may not confirm the correct part across all serial ranges.
