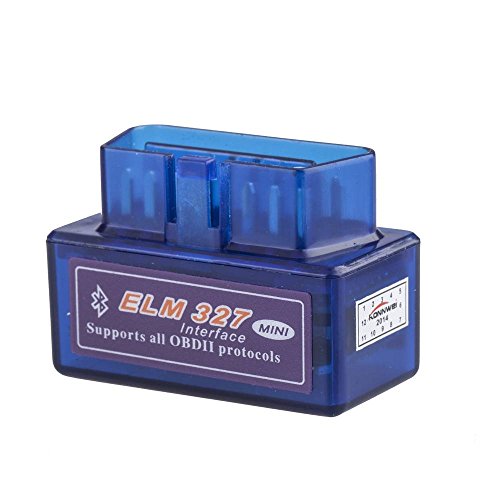

Autotool Tech ELM327 V2.1 OBD2 II Bluetooth Interface Auto Diagnostic Scanner Works on Android Torque/PC
Product Description
Autotool Tech ELM327 V2.1 OBD2 II Bluetooth Interface Auto Diagnostic Scanner Works on Android Torque/PC
- Lateat software version V2.1 supports all OBD-II protocols.
- Can also be used with a PC with a Bluetooth Card.Bluetooth connection, no Batteries, Cables, or Switches.Wireless (Bluetooth) 5~ 10 meters.
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Plug in the device, turn the ignition key to "ON" (or start your vehicle), pair your phone with Bluetooth device named "OBDII" (pin 1234) and run the App. When the device connects to your vehicle's ECU, you are done! Very low power consumption when not in use. (Some settings in the App may be required)
- NOT for iOS. For iPhone or iPad. We back it with 30-day money back guarantee, 12-month hassle-free replacement warranty and easy to reach, friendly customer support.
Features:
1. Display current sensor data, including: Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim
2. Display current sensor data, including: Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure etc.
Clear trouble codes and turn off the MIL ("Check Engine" light)
Operation system supports:
Android Smartphones, Symbian, Microsoft (mobile phone, tablet), most computer system(except Apple system), and all these device must have Bluetooth function.
Vehicle Coverage:
Works on all OBD2 Vehicles.
OBD-II Protocols:
SAE J1850 PWMSAE J1850 VPW (10.4 Kbaud)
ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1850 PWM
SAE J1850 VPW
ISO 9141-2
ISO14230-4 KWP
ISO14230-4 KWP
ISO15765-4 CAN
ISO15765-4 CAN
ISO15765-4 CAN
ISO15765-4 CAN
Specifications:
Processor: ELM327 V2.1
Dimensions: about 4.7 * 2.5 * 3.1cm
Net weight:31g
Package weight:41g
Color:blue
Package includes:
1 x ELM327 Bluetooth OBD2 Scanner Tool
1x CD
Technical Specifications
