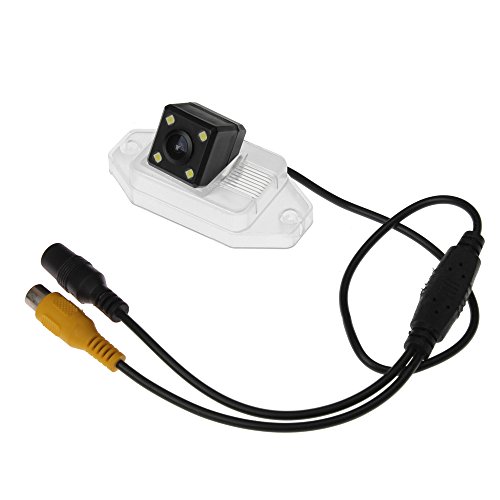

Amooca HD 170 Degree CCD Car License Plate Mount Rear View Backup Camera For 2007 2008 2009 2010 2011 2012 2013 Toyota Prado Night Version with guidance line

Note:1¡¢Please confirm the model and year of your lovely car before order.
2¡¢we will send the NTSC in defaut,if you need PAL,please leave me a message when you order.
Specification:
Image Device: Sharp CCD sensor
TV System: PAL/NTSC (Random delivery)
Waterproof Rate: Ip66
Effective Pixels: PAL 720*576 pixels,NTSC 720*480 pixels
Resolution: 420TV lines
Minimum Illumination: 1.0Lux / F1.2
Pin Lens: f=1.8mm / F = 2.0
Lens Angle:170??
Vertical Sync. Frequency: 60Hz
Video Output: 1.0vp-p, 75Ohm
Power Supply: DC12V
Current Consumption: ?¨¹120mA
Operating Temperature: -20??C~70??C , RH95% MAX
Storage Temperature: -40??C~85??C, RH95% MAX

How to Install :
1. Take out your stock license plate light at the back of your car.
2. Fix the camera to where the stock license plate light was.
3. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
4. Connect the power of the camera to your Reverse lights - red wire to positive and black wire to negative.
5. Connect the video cable of the camera to the extension cord.
6. Connect the extension cord to your car monitor.
7. You will see the images when your car is in reverse shift.
Package:
1 x SONY CCD Car RearView Backup Camera
1 x 5M video cable
1 x power supply cable
