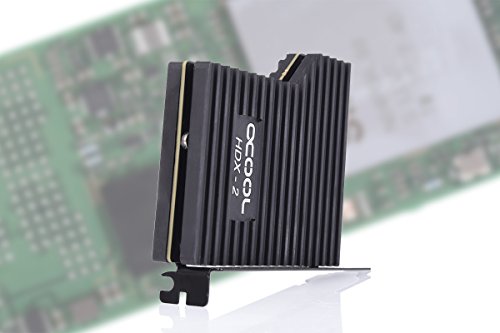

Alphacool Eisblock HDX-2 PCI-e 3.0 x4 Adaptor for M.2 NGFF with Passive Cooling Block

The Alphacool Eisblock HDX-2 is a massive passive cooler for your M.2 SSD. The included PCIe card, on which the cooler is mounted, also provides your SSD with an outstanding bandwidth of up to 3900 MB/s. The Alphacool Eisblock HDX-2 offers outstanding cooling for your M.2 SSD. Continuous data transfer dramatically lowers the performance of an M.2 SSD without cooling and can actually drop performance down to as little as 10% of its actual capability. Transferring large amounts of data heats up the memory controller and chips until a safety mechanism kicks in and severely throttles the SSD's performance. This can be countered by actively cooling the SSD. After developing the M.2 HDX cooler for motherboards with M.2 slots, Alphacool is now offering the HDX-2, a massive passive cooler with a cooling surface many times larger than the HDX M.2 cooler. The M.2 SSD is screwed onto a PCIe card and then mounted onto the water block. The cooler consists of a large passive aluminum heatsink that completely covers the M.2 SSD. This optimally cools the entire M.2 SSD and prevents a decrease in performance due to high temperatures. The PCIe card is plugged into a 4xPCIe slot and screwed onto the case. That's a 600% improvement over conventional 2.5" SATA-SSDs, since the maximum bandwidth for those is 640 MB/s. Even compared to motherboard slots, the plug-in card combined with the cooler still offers substantially higher transfer rates. M.2 SSDs on motherboards are often only plugged into a 2xPCIe slot, which halves the maximum data transfer rate. It is also difficult to properly cool an M.2 SSD on a motherboard, since the graphics card is generally mounted directly above or below it and tends to significantly heat up the surrounding area. With the Alphacool Eisblock HDX-2, you can avoid all these problems and get the best performance from your M.2 SSD. Model: 11438.
