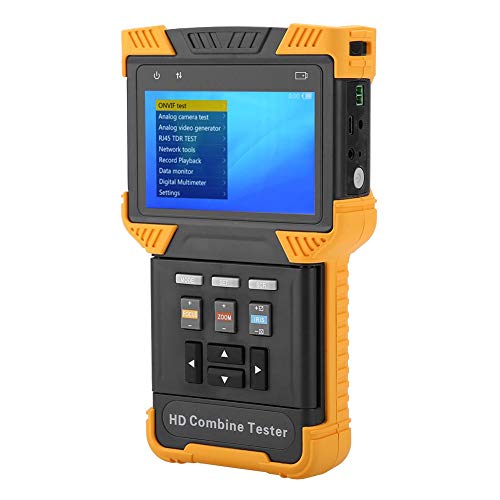

Akozon CCTV Tester DT-T60 Multi-function Tester 1080P IP Analog Camera Testing HD Combine Tester AC100-240V 4.0" LCD CVBS Analog Camera Tester Video/PTZ Tester/Security Camera/Cable Tester(US Plug)
Product Description
Akozon CCTV Tester DT-T60 Multi-function Tester 1080P IP Analog Camera Testing HD Combine Tester AC100-240V 4.0" LCD CVBS Analog Camera Tester Video/PTZ Tester/Security Camera/Cable Tester(US Plug)
- 【4.0 Inch Display CCTV Tester】4.0 inch IPS Display with 800 * 480 resolution and 16.7M Colors, back light level adjustable.Support ONVIF network HD camera and CVBS camera test. with video display, DC 12v output power, Audio test, and multilingual OSD; The LCD screen video monitor with 800 * 480 high resolution can show clear image when troubleshooting a security camera system.Ergonomic, portable design and single-handed operation.
- 【Excellent Performance】The CCTV Tester Supports for traditional analog SD video systems, analog HD video systems, and IP HD systems in one device.Step-by-step testing guide allows you to locate faults quickly.100M network port, support packet loss detection, data flow monitor, etc.Rubber protection layer,Dual LED torch light. Replaceable lithium-ion polymer battery, battery life of 10 hours.
- 【Application】The CCTV Multi-function Tester can be applied to analog SD video, analog HD video, HD IP CCTV systems, IP camera testing, Ethernet testing, video screen shots, video recording, playback, and other functions, and combined with analog camera testing.
- 【PTZ Control】The CVBS Analog Camera Tester is Compatible with multiple PTZ protocols (Pelco-D/P、Samsung、Panasonic、Lilin、Yaanetc.); baud rate: 150, 300, 600, 1200, 2400, 4800, 9600, 19200bps (optional), zooms in/out the lens, adjusts the focus, aperture/sets/calls the preset position, PTZ continuing rotate test.Highly compatible with ONVIF protocols.
- 【Excellent Design】This new camera tester was designed with palm size and portability which make it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field; Best cost effective equipment for camera installation and inspection.Ergonomic, portable design and single-handed operation. POE power supply, PD power accept, and 12V/2A power output.
Specification:
Model:DT-T60
Voltage:AV100-240V
Plug:EU plug, US plug, AU plug, UK plug  (Optional)
Network interface:Dual10/100M RJ45,support switch mode
Function interface:DualBNC connector（Video input/output）,RS485comm,audio input,USB,reset button
protocol:ONVIF 2.4.1, RTSP, RTP
Ethernet test:10/100MLink test, link speed test, Ethernet loop detect,Ethernet flow monitor, Link quality indicator
IPC Image Test:H.265/ H.264 Encode, Support 4K@30FPS
SD standard:NTSC, PAL
Video resolution:D1
Signal level:1Vpp
Baud rate:150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Network analysis:Sniff, list sub-net, for ping
Video generator:SendPAL/NTSC of various test pattern to output
Record playback
Display:4.0inch TFT 800*RGB*480(WVGA) resolution,16.7M color, back light level adjustable
Internal storage:8GBflash
LED torch:Two 35lm LED, can turn on individually when device is off.
Language:Chinese,English,French,Spanish,Germany,Turkish,Russian
Keypad tone:On/Off
Software upgrade:Online upgrade
battery:Dedicate li-polymer battery, user replaceable, capacity11Wh
Power output:12V/1Aoutput
Battery work time:Charge 3~4hours, working time 5 hours
Battery:1*LI-POLYMER battery(Not included)
Device Dimension:19.5*11.5*3.5cm/7.7*4.5*1.4in
Weight:Approx.1300g/45.9oz
Package List:
1 * CCTV Tester with Battery
1 * charger
1 * video cable
1 * PTZ control cable
1 * audio cable
1 * network cable
1 * data connection cable
1 * power cable
1 * strap
1 * bagÂ
Technical Specifications
