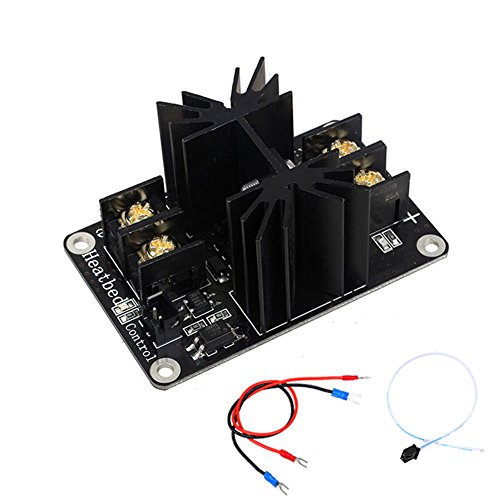

Adealink New 3D Printer Heated Bed Power Module High Current 210A MOSFET Upgrade RAMPS 1.4 12V-50V
Product Description
Adealink New 3D Printer Heated Bed Power Module High Current 210A MOSFET Upgrade RAMPS 1.4 12V-50V
- Heated bed power module
- Based on powerful MOSFET HA210NO6
- Size: 70*45mm
- Mounting holes: 3.2mm diameter, for M3 screws.
- Distance betweeen holes: 62.8*37.8mm
Feature:
Heated bed power module
Based on powerful MOSFET HA210NO6
Size: 70*45mm
Mounting holes: 3.2mm diameter, for M3 screws.
Distance betweeen holes: 62.8*37.8mm
Very powerful MOSFET to withstand higher current than normal RAMPS or other 3D Printer controller can handle
Voltage: 12V-50V
Maximum current with active cooling: 210A
This module is based on power MOSFET and will allow PID control of the heated bed (DC-DC Relays usually do not allow this)
Under the premise of normal cooling, it work stable under I(Max)=25A, the current must not exceed 25A while the process working
Included:
1 x Heated Bed Power Module
1 x Connection cable for input signal
2 x Power Connection Cables
Technical Specifications
