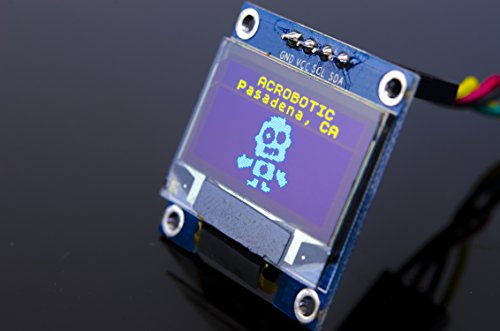

ACROBOTIC 0.96" Inches Yellow-Blue I2C 128x64 OLED LCD Display Module for Arduino, ESP8266, MSP420, STM32, 8051, Raspberry Pi LED Screen

ACROBOTIC 0.96" Inches Yellow-Blue I2C 128x64 OLED LCD Display Module for Arduino, ESP8266, MSP420, STM32, 8051, Raspberry Pi LED Screen

Product ID: B01AE3MR7Q Condition: New
$ 67
includes Duties & VAT
Delivery: 10-20 working days
Ships from USA warehouse.
Secure Transaction
VISA Mastercard ozow

Product Description

ACROBOTIC 0.96" Inches Yellow-Blue I2C 128x64 OLED LCD Display Module for Arduino, ESP8266, MSP420, STM32, 8051, Raspberry Pi LED Screen

  • Operating Voltage: 3.3~5VDC
  • Connects via I2C to any microcontroller or single-board computer
  • Works with ESP8266, Arduino, 8051, MSP420, STM32, Raspberry Pi!
  • Pixel Color: yellow (16 rows) and blue. Resolution: 128x64 pixels; Size: 0.96in (diagonal)
  • Built-in SSD1306 driver; I2C address: 0x3C
These displays are small, only about 1in diameter, but very readable due to the high contrast of an OLED display. This display is made of 128x64 individual OLED pixels, each one is turned on or off by the controller chip. The top 16 rows are comprised by yellow pixels, whereas the bottom 48 are blue. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast; we really like this miniature display for its crispness!

This breakout can be used with either an SPI or I2C interface - selectable by soldering two jumpers on the back. The design is completely 5V-ready, with an onboard regulator and built in boost converter. It's easier than ever to connect directly to your 3.3V or 5V microcontroller or single board computer!

Features:
  • Size: 0.96in
  • Resolution: 128 64pixels
  • Viewing angle: greater than 160deg
  • Power: 0.04W (low-power mode)
  • Input voltage: 3.3V~5VDC
  • Working temperature: –30~80°C
  • Size: 27mm×27mm×4.1mm
  • Driver IC: SSD1306
  • Communication: I2C
  • Backlight: OLED self-lit (no backlight)
  • Pixel Color: yellow (16 rows) and blue

We have written useful guides for getting you started with these OLED screens:

  • ESP8266: http://learn.acrobotic.com/tutorials/post/esp8266-oled-display-using-i2c

Technical Specifications

Country
USA
Binding
Electronics
Brand
ACROBOTIC
Color
Blue PCB, Blue and Yellow fonts.
EAN
0769748350036
Label
ACROBOTIC Industries
Manufacturer
ACROBOTIC Industries
Model
DIS-00003
MPN
DIS-00003
PartNumber
DIS-00003
Publisher
ACROBOTIC Industries
Studio
ACROBOTIC Industries
