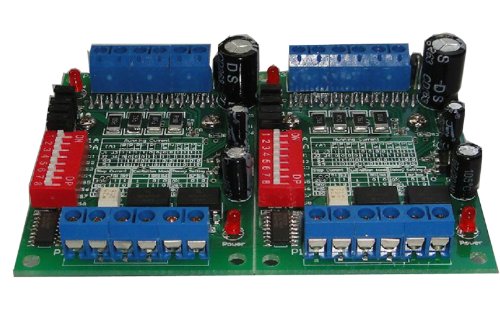

4257 Stepper Motor Driver Board / Drive Toshiba Tb6560 3A 2 Axis Shared Heatsink

4257 stepper motor driver board / drive Toshiba TB6560 3A 2 axis shared heatsink

1) Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply. (Power input termination reverse protection diode)

2) 6N137 high-speed optical coupling, guarantee high speed without losing step.

3) using the Toshiba TB6560AHQ new original chip with low pressure off, overheating parking and over-current protection circuit

4) Rated maximum output: ± 3A, peak 3.5A.

5) for two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor.

6) automatic half current function.

7) subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions.

8) Dimensions: width 100 * 75 * high 35 (MM)



Features similar products:

1, shared a large heat sink, helps to enhance heat dissipation.

2, the current 10-speed adjustable to meet your demand for a variety of applications.

3, 4-speed semi-automatic flow adjustable.

4 6N137 high-speed optical coupling, guarantee high speed without losing step.

5 board printed setup instructions, without manual also operating
