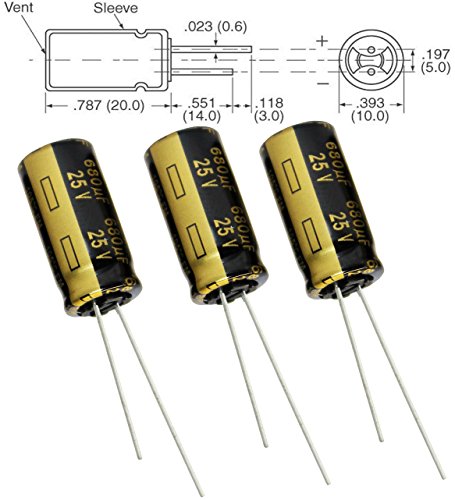

3x Panasonic FM 680uF 25V Low-ESR Aluminum Electrolytic Capacitors - Leaded, 5000 hours @ 105C, 20% Tolerance, 10x20mm,
Product Description
3x Panasonic FM 680uF 25V Low-ESR Aluminum Electrolytic Capacitors - Leaded, 5000 hours @ 105C, 20% Tolerance, 10x20mm,
- Panasonic 680uF 25V Capacitors (Pack of 3)
- Capacitance of 1000µF, 16 (V), 5000 hours @ 105C
- Low impedance, 20% Tolerance
- ESR: 0.019 Ohm
- Dimension: 10mm x 20mm (H) / Lead Space: 5.0mm
OverView: Since the anode is made out of pure aluminum, you'll be able to filter lower frequencies with ease using Panasonic's electrolytic aluminum capacitor. It can withstand a voltage of 25 VDC.
This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The aluminum electrolytic capacitor has a radial termination style. Its leakage current is 170@2Min μA. Its capacitance value is 680uF. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 10 mm.
This part has a lead diameter of 0.6 mm and a pitch of 5 mm.
Specifications
Manufacturer:Panasonic
RoHS:RoHS Compliant Details
Series:FM
Termination Style:Radial
Capacitance:680 uF
Voltage Rating DC:25 VDC
Tolerance:20 %
Ripple Current:2.18 A
Maximum Operating Temperature:+ 105 C
Diameter:10 mm
Length:20 mm
Lead Spacing:5 mm
Product:Low Impedance Electrolytic Capacitors
Life:5000 Hour
ESR:19 mOhms
What's included:
Panasonic 680uF 25V Capacitors (Pack of 12)
Technical Specifications
