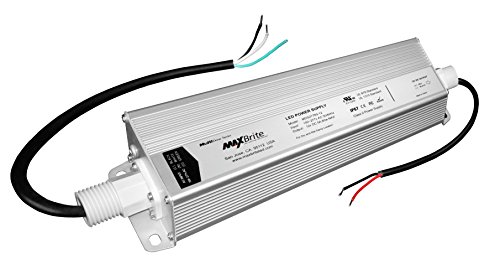

20W LED POWER SUPPLY, 12V DC Output, 100-277V AC Input, IP67 Waterproof, UL/cUL Certified, CE, RoHS, Class 2

60 Watt COMMERCIAL GRADE LED Power Supply, 12V DC Constant Voltage Output, UL Class 2 Certified
HEAVY DUTY Aluminum Extruded Case with Junction Box Connector Ends, IP67 for Indoor or Outdoor Applications


PRODUCT SPECIFICATIONS:

• Input Voltage: 100-277V AC full range
• AC Draw:   (0.86A@100V   0.37A@230V   0.31A@277V)
• Frequency: 47hz to 63hz
• Output Voltage: 12V DC 5 amps
• Output Power:   60W (5A) Max
• Efficiency: 86%
• Overload Protection: Auto Recovery (over voltage, over current short circuit protection)
• Leakage Current: 0.25mA/240 AC
• Ripple and Noise: 100mVp-p
• Inrush Current:   25°c cold start, 30A at 240AC


ENVIRONMENTAL:

• Operating Temperature: -22° to +158°F
• Humidity: 20%-90% (RH-NonCondensing)
• Cooling:   Air Convection
• Vibration Frequency: 10 to 50 Hz
• MTBF: Khrs min MIL-HDBK-217F (25°C)

• Energy efficient, eco-friendly environment
• Certified: UL879, UL1310 Class 2 recognized
• Waterproof: IP67 rated for dry, damp and wet locations

Product Dimensions: 10-1/4'' x 2-3/4'' x 1-7/8" (L x W x H)
Package Weight:       2.80 lbs.

Applications:
Signage and Back Lit Letters, Remote Channel Letters, Light Boxes and Raceway
Under-Cabinet Installation, RV/Motorhome Lighting, Accent Lighting, or any Low Voltage Project


HIGH QUALITY - 100% Satisfaction Guaranteed.
