Electronics > Security & Surveillance > Home Security Systems

20 Doors Security Control Systems 600lbs Electrionmagnetic Lock 110-240V Power Box RFID Reader/Keyfods/Cards Exit Button

Product ID: B07D9KPZK3 Condition: New

Sold Out

Product Description

Control 20 doors, get in the door by swiping card, and get out door by button,Store Entry records
Control of memory up to 20,000 user / up to 100,000 logs. Auto Open/Close at any pre-set time during any day. Support "who" can enter which door at certain time, Authorized access control
Input Format of ReaderL:Wiegand 26/Wiegand34 (All card reader with compatible protocol, RFID/Mifare/HID)
Electric Magnetic Lock(280kg holding Force),Secure Locking Solutions, Access control, Locking & Entry Devices
Network communication via TCP/IP. Software Supportable Database: Access & SQL Server. Support win7/win8/win10 both 32 and 64 bit system

We provide video guide+Detail wire diagram, so you can easily setup System, also provide live support.

We will do express shipping to you, take 6-9 days normally to USA.

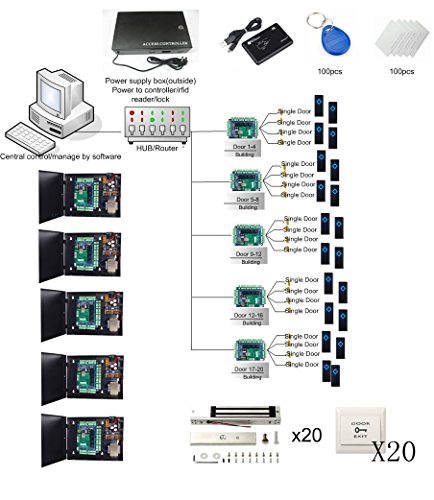

Package include:
20pcs RFID Reader(Waterproof)
5pcs 4 doors Access-Control Panel
20pcs Electric Magnetic Lock(280kg/600lbs Force)
5pcs Power supply Box( 110-240V input, 5A output, to power the whole system, also as cabinet for above control board)
20pcs Push to Exit button
100pcs RFID Keyfods
100pcs RFID Cards
1pc Enroll RFID USB Reader
1 pc English user manual

Power Supply Box Specifications:
60W/5A Output
Input Voltage:110V-240V,Output Voltage 12VDC
Size of the box:279mm * 234mm * 67mm

4 Doors Access-Control-Panel:
Control 4 door,get in by swiping card and get out door by button
Door controlled :4
Support 4 readers
Control of memory up to 20,000 user / up to 100,000 event buffers
Network communication via TCP/IP

The RFID Proximity Reader:
Size:102*43*16(mm)
Less than 0.2 second Response Speed, 5-10cm Proximity Range
Built-in Antenna& LED&Loud Speaker(Buzzer)
It's Water-Proof

Electric Magnetic lock:
It is a High-performance 280kg Holding Force electric magnetic lock which suit for many access control system.
NC Mode-(Locked while supplied with power)
Performance Testing: 1000000 times aging test
Suitable For: Wooden Door, Metal Door, etc.
Safety function: Built-in voltage spike suppressor

Exit Button:
This exit button widely used in the door access control system.When you want to go out, you just need to press this Exit Button, then you can go out.
